This high-speed paper food bucket machine adopts a desktop layout, with transmission parts under the table and molds on top for easy cleaning and maintenance. It features auto spray lubrication, longitudinal shaft drive, barrel indexing and gear transmission for stable quality. Controlled by PLC, photoelectric tracking and servo feed, it runs at 90–120 buckets/min for 16–48 oz sizes, supports 210–330g/㎡ single/double PE and PLA paper, with a 7-inch panel, optional detection/collection table, and custom tooling.

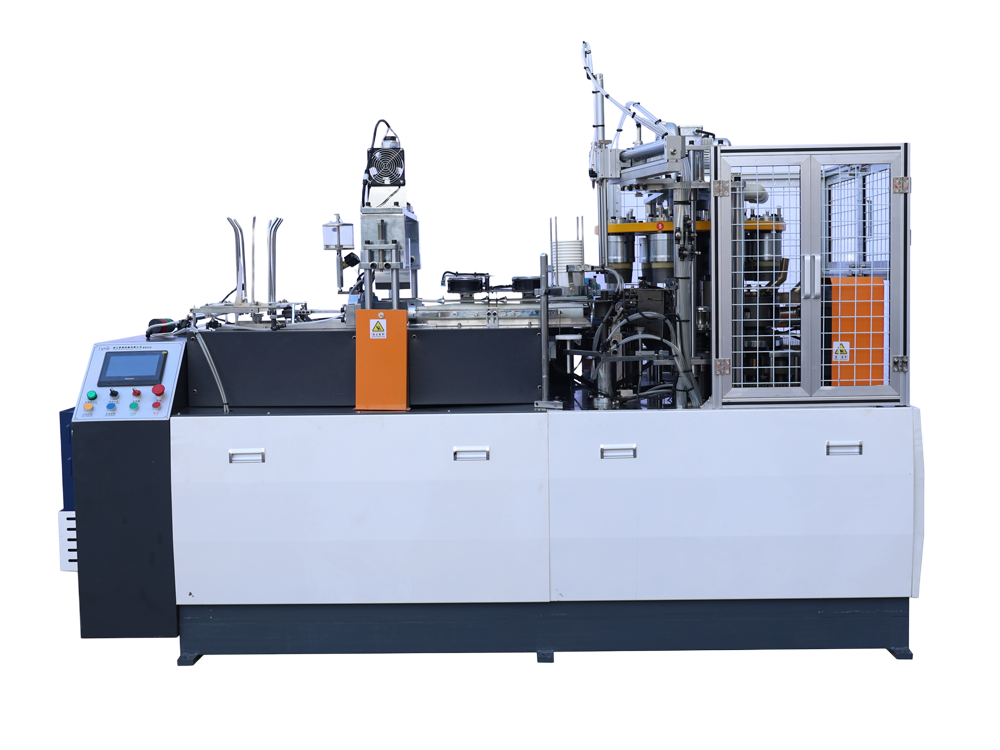

This gear-driven salad bowl machine series features integral steel plate construction and an oily lubrication system for long-term stable operation. Both models handle single/double PE paper (180-350 g/m²) at 40-60 pcs/min, with PLC control and 15kW power. The LZ-GB60 produces 35-60 oz bowls (T:140-185mm, B:120-165mm, H:50-90mm), while the LZ-GB120 produces 35-120 oz bowls (T:140-200mm, B:120-165mm, H:50-170mm). Both support custom sizing per user requirements, with comprehensive automation from feeding to discharge.

This series offers two robust paper bowl forming machines built with integral steel plate bodies and oil‑type lubrication systems for long‑term stable operation. The high‑speed 10‑station model delivers 80‑100 pcs/min for 12‑35 oz bowls (T:90‑150mm, B:70‑128mm, H:50‑125mm), while the medium‑speed model runs 60‑70 pcs/min. Both handle single/double PE paper at 140‑350 g/m², with PLC control, 15kW power, and 380V/50Hz. Custom size tooling available per user requirements, with comprehensive automation from feeding to discharge.

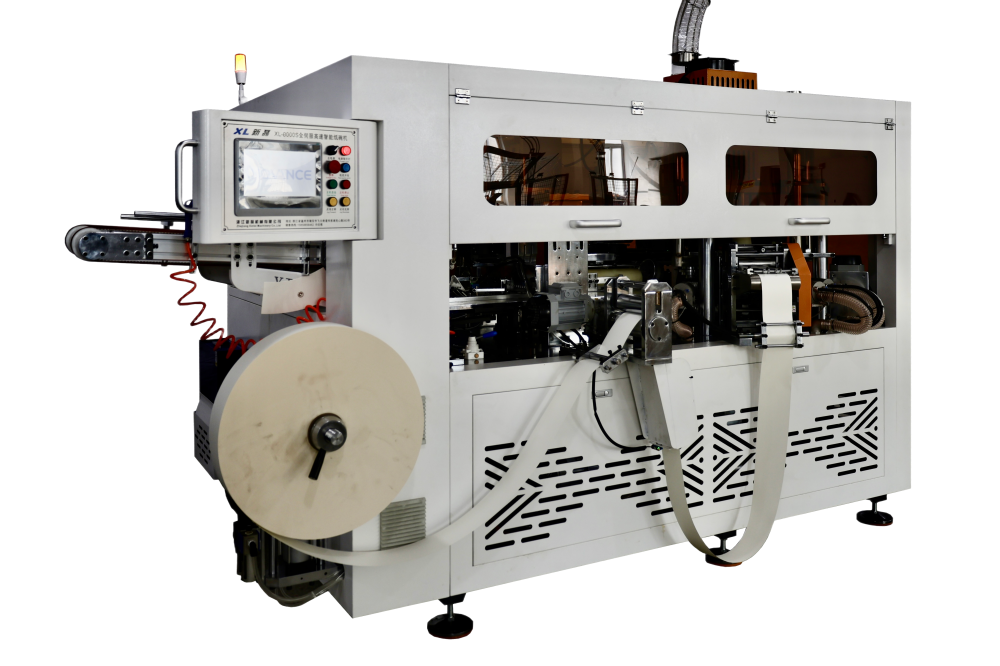

This smart servo-driven paper bowl machine series features a desktop layout that isolates transmission parts under the table and molds on top, simplifying cleaning and maintenance. Automatic spray lubrication, servo control, barrel indexing mechanism, and gear transmission ensure stability and product quality. PLC, photoelectric tracking, and servo feed manage all electrical operations.

This series includes two gear‑cam driven paper cup machines, both powered by a single main motor and equipped with a single aluminum disk to reduce failures and training time. The LZ-GC16(08) (8 stations) runs at 70‑90 pcs/min, while the LZ-GC16(10) (10 stations with 5 heating groups) reaches 90‑120 pcs/min. Both produce 3‑16 oz cups with single/double PE, PLA, or water‑based coatings. Fully automated processes cover feeding, ultrasonic/copper welding, bottom forming, knurling, and discharge. Custom molds are available for each model, offering flexible production solutions.

This single-motor paper cup machine integrates gear and cam drive for smooth operation. Its single‑aluminum‑disk design cuts failure rates and training time versus old three‑disk models. Producing 16–22 oz single/double PE cups at 50–70 pcs/min, it automates feeding, welding, transfer, bottom forming, knurling, and discharge. Built with in‑house stability upgrades, it also accepts custom molds for flexible production.

The LZ-SC130S / SC150S / SC160S is a semi-servo smart paper cup machine producing 120–150 pcs/min for 5–16 oz cold & hot cups. Its desktop layout isolates drive components under the table from molds above — easy to clean and maintain.

The LZ-SC200M is a high-speed intelligent full servo paper cup machine producing 150–180 pcs/min for 6–16 oz hot & cold cups. Its desktop layout isolates drive components below from molds above — simple to clean and maintain.

The LZ-SC180M is a high-speed smart full servo paper cup machine producing 160–200 pcs/min for 6–16 oz hot & cold cups. Its desktop layout isolates drive components below the table from molds above — easy to clean and maintain.

The LZ-SC220F is a high-speed intelligent full servo paper cup machine producing 180–220 pcs/min for 6–16 oz hot & cold cups. Its desktop layout isolates drive components below the table from molds above — easy to clean and maintain.

LZ-FP2/4/6 Series flexo printing machine with 360° longitudinal & ±20mm transverse register, ±0.20mm precision. Ceramic anilox ink system, pneumatic plate lifting, external heating drying. Inovance inverter, Schneider switches. Max width 1300mm, speed 5–100m/min. Ideal for paper bag, cup & bowl production.

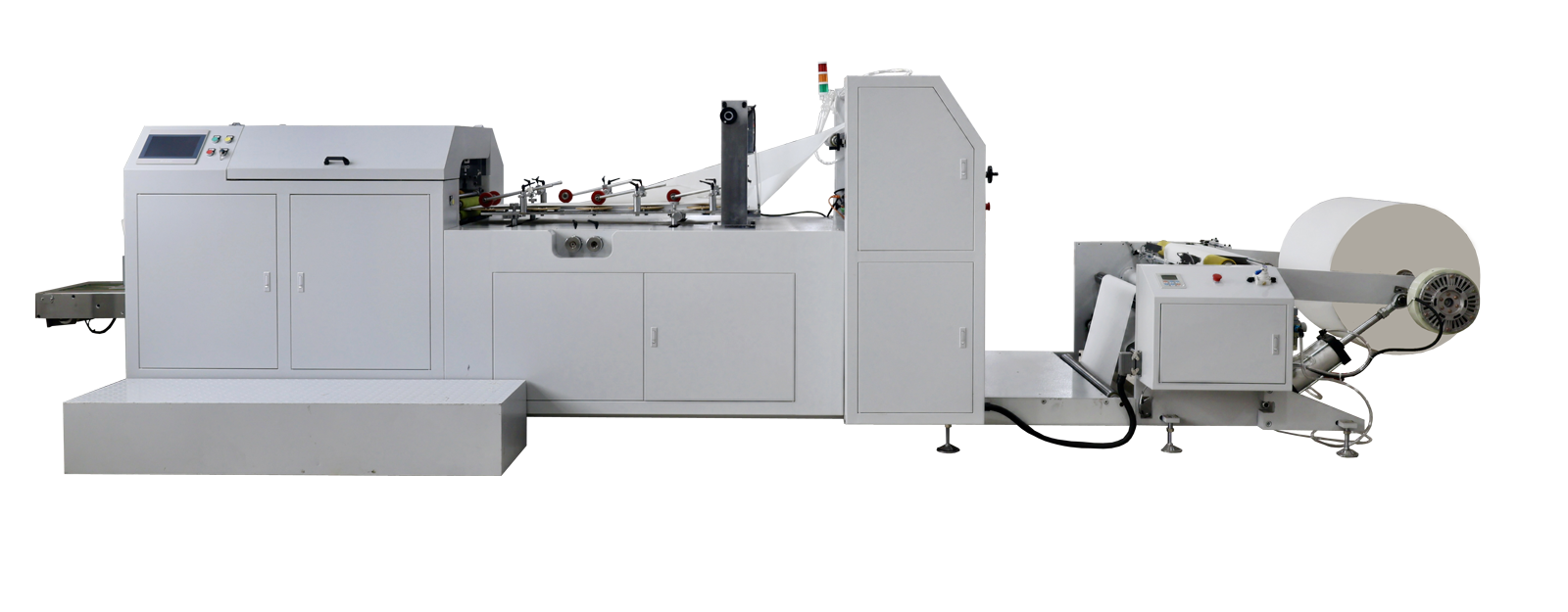

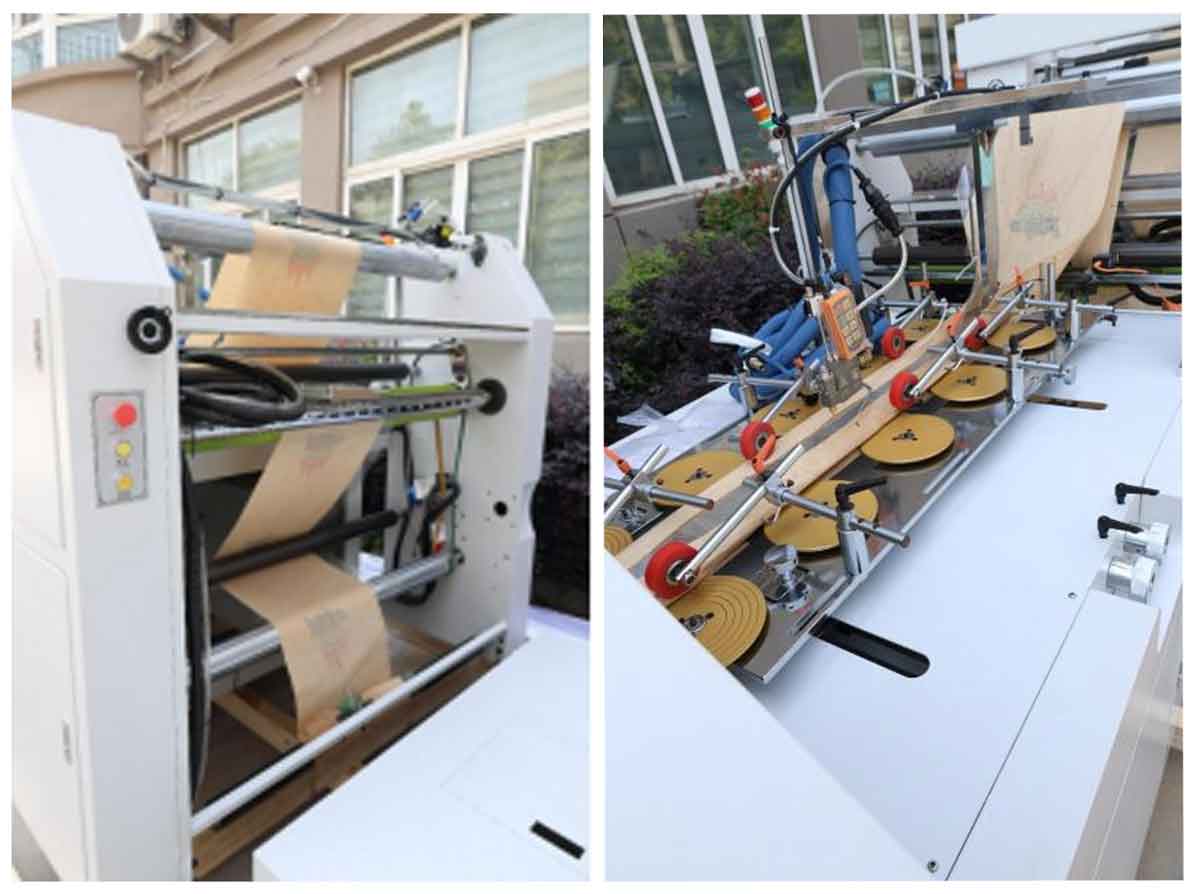

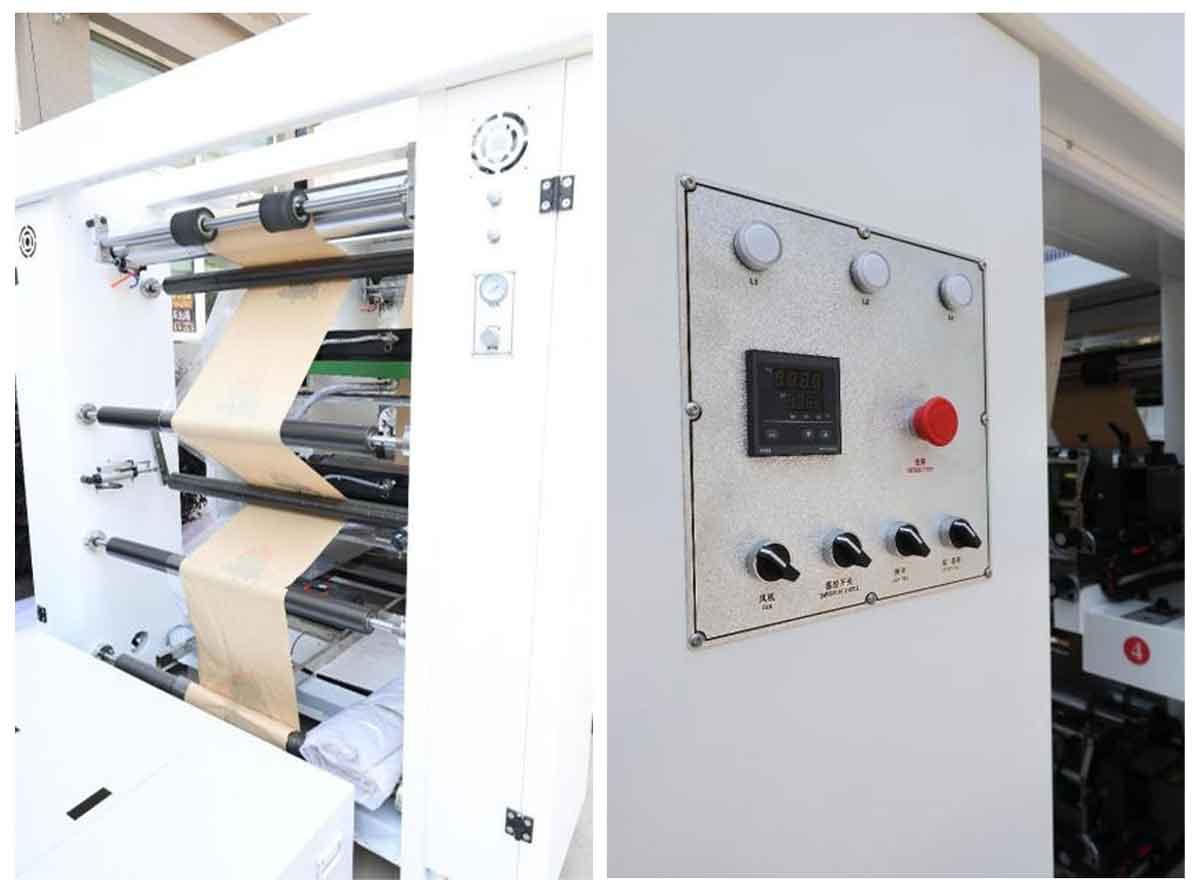

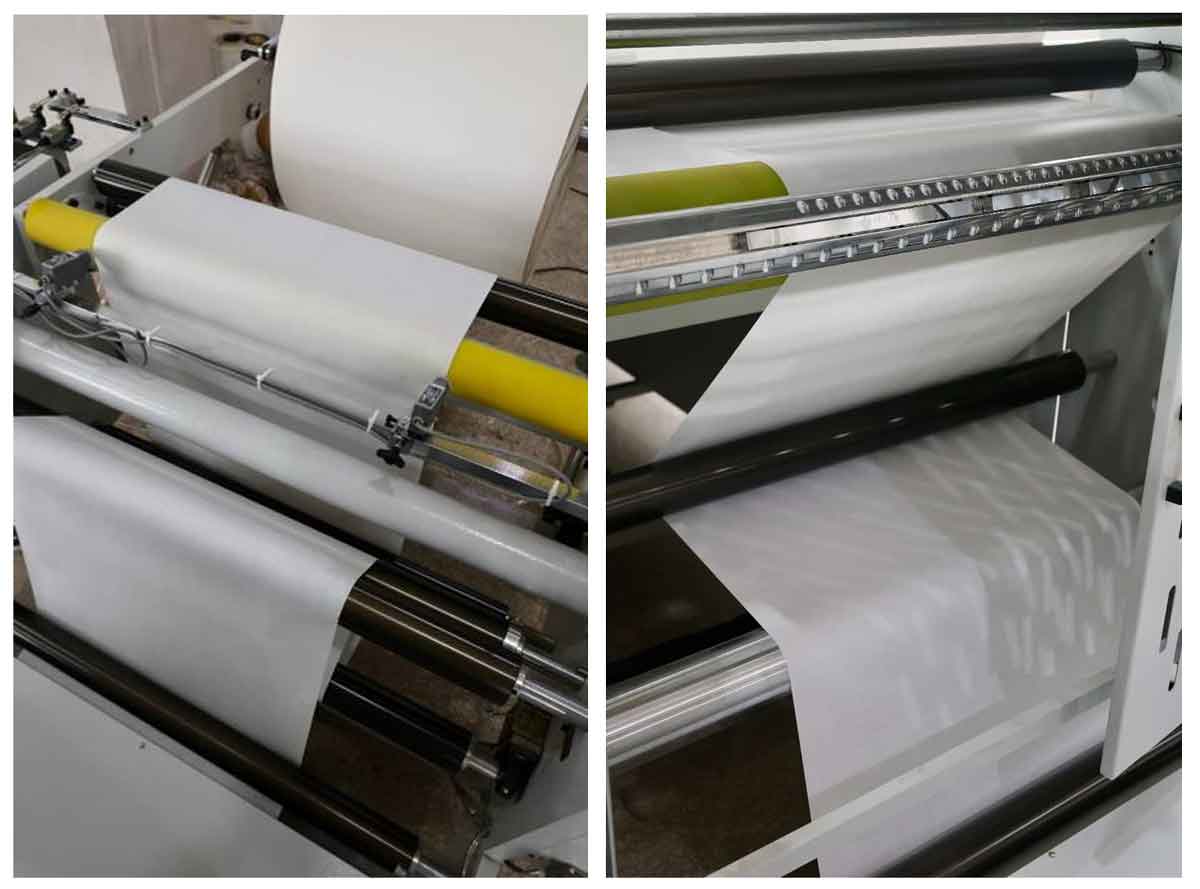

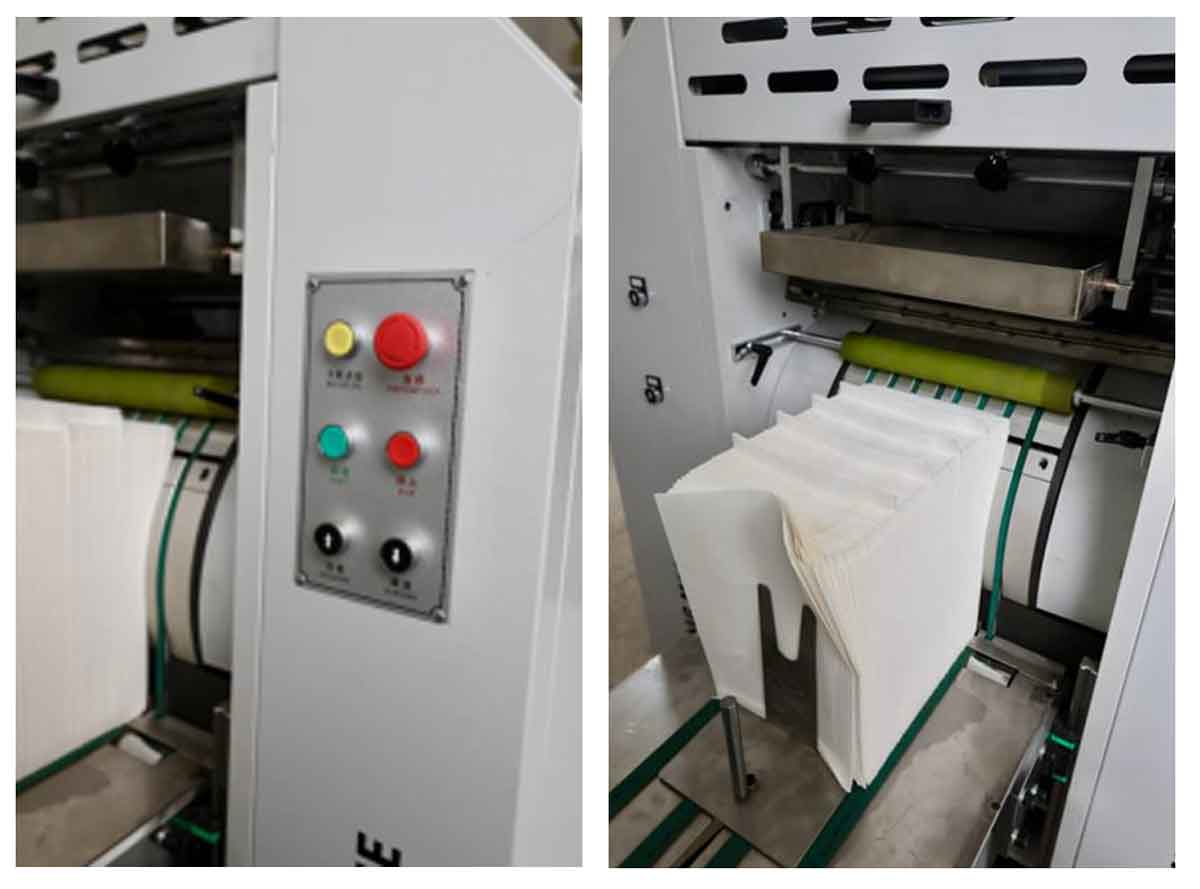

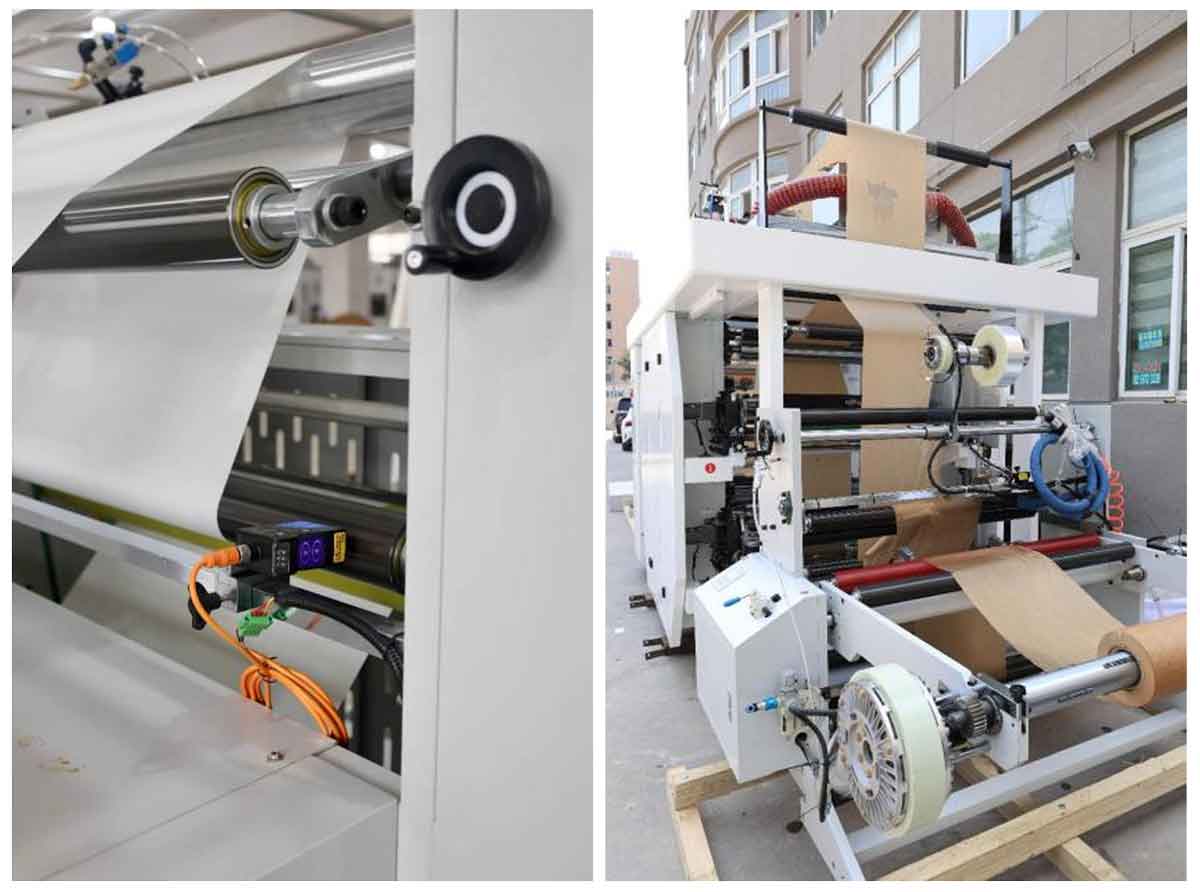

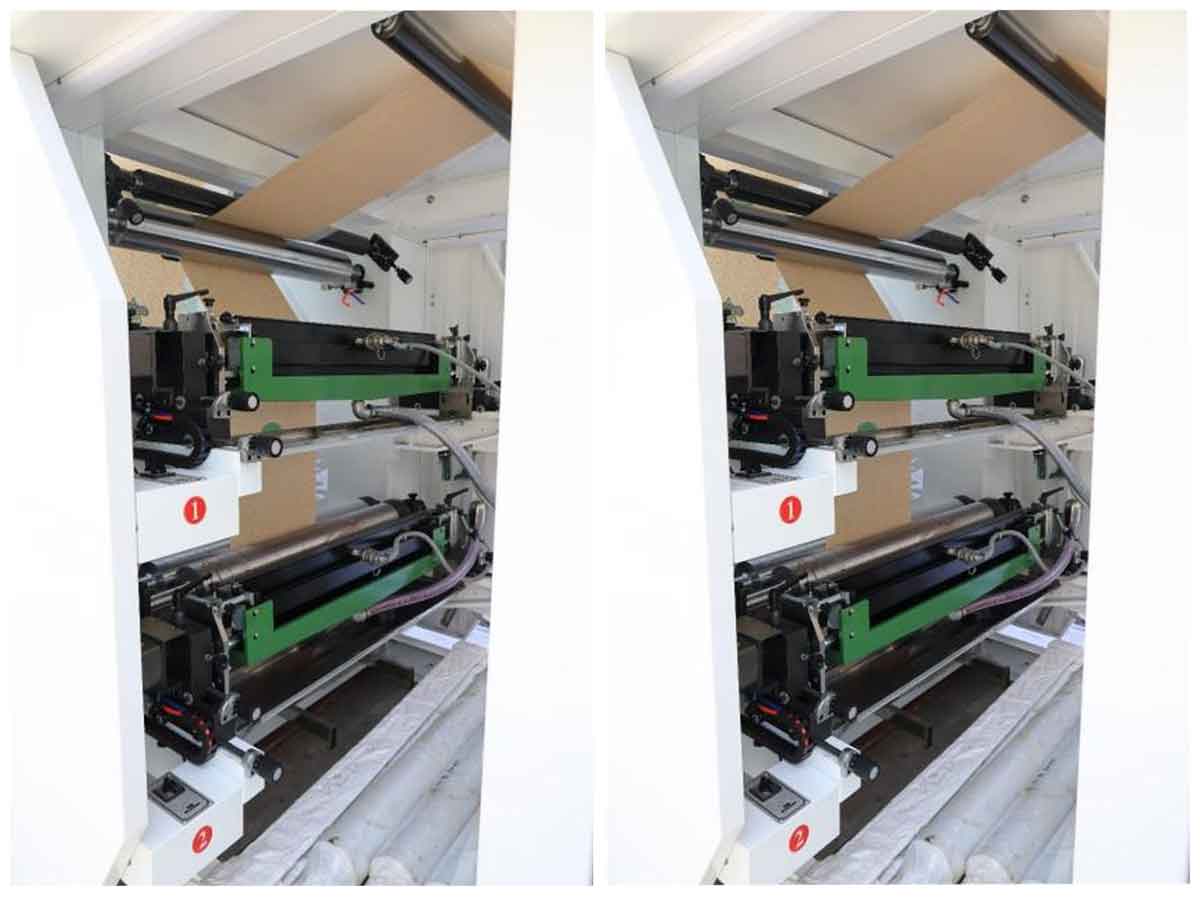

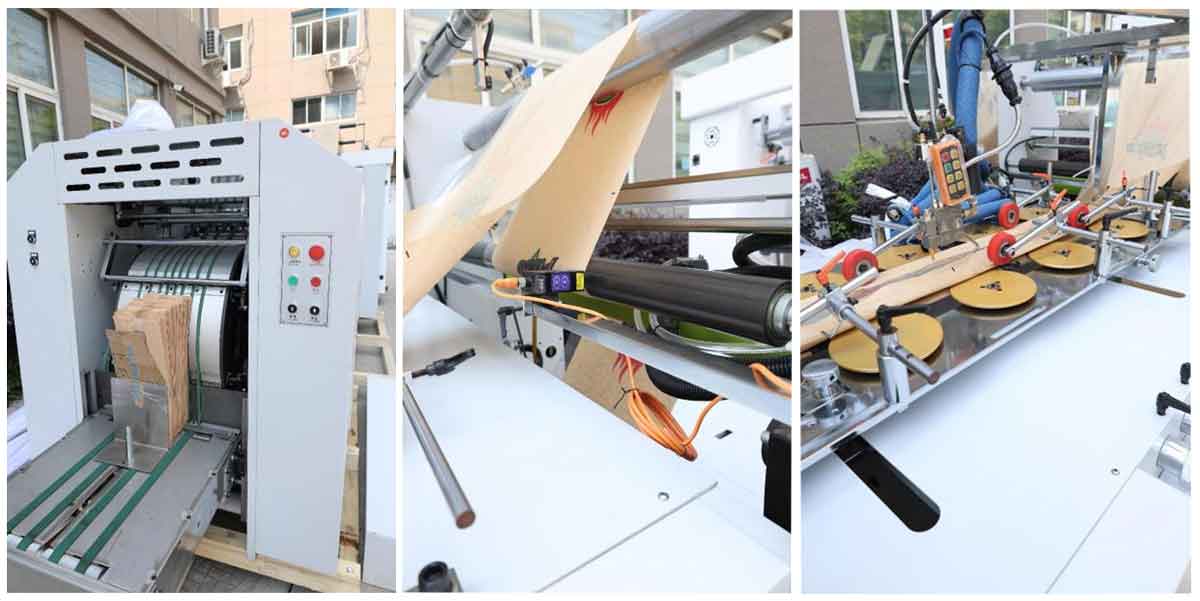

The LZ-JD350 is a fully automatic sharp bottom paper bag machine with inline 4-color printing. It processes kraft, striped kraft, slick, food coated and medical paper rolls — puncture, side gluing, edge folding, bag forming, cut off, bottom folding, bottom gluing and output in one cycle. Max speed 400 bags/min, bag width 100–340 mm, paper 45–80 g/m². Features Fanyi HMI, Mitsubishi servo system, SICK colour mark sensors and hydraulic roll loading. Ideal for snack, bread, dry fruit and eco-friendly paper bags.

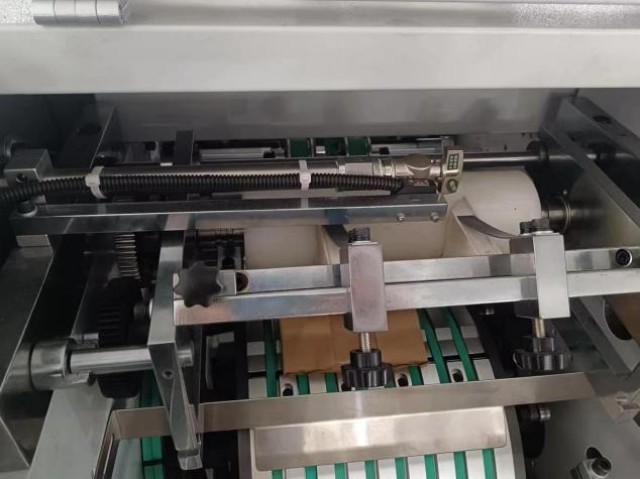

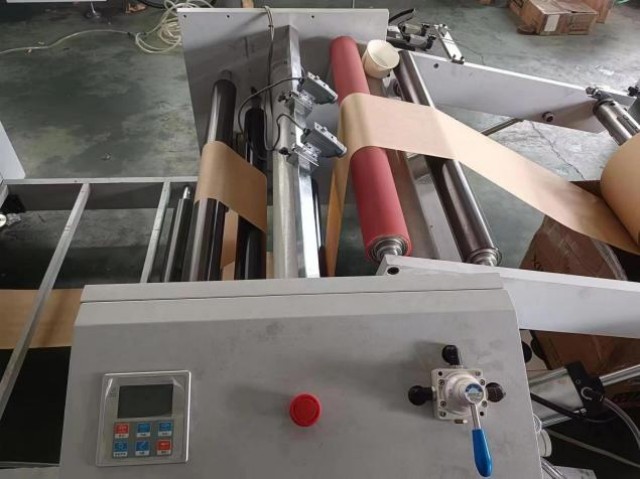

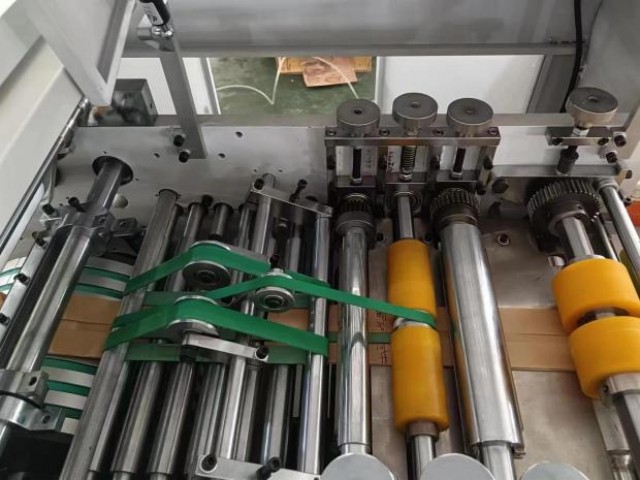

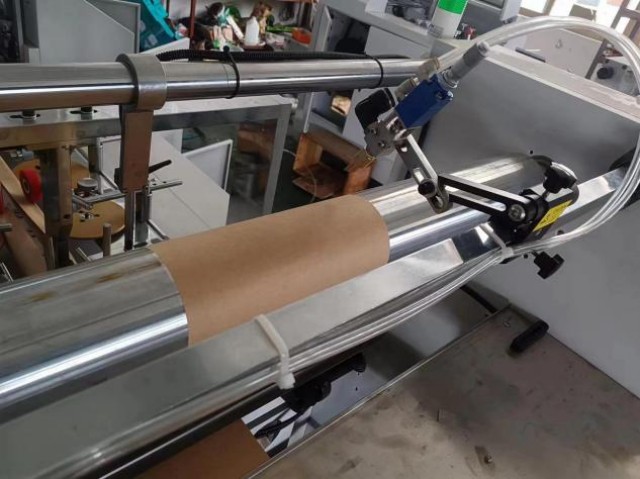

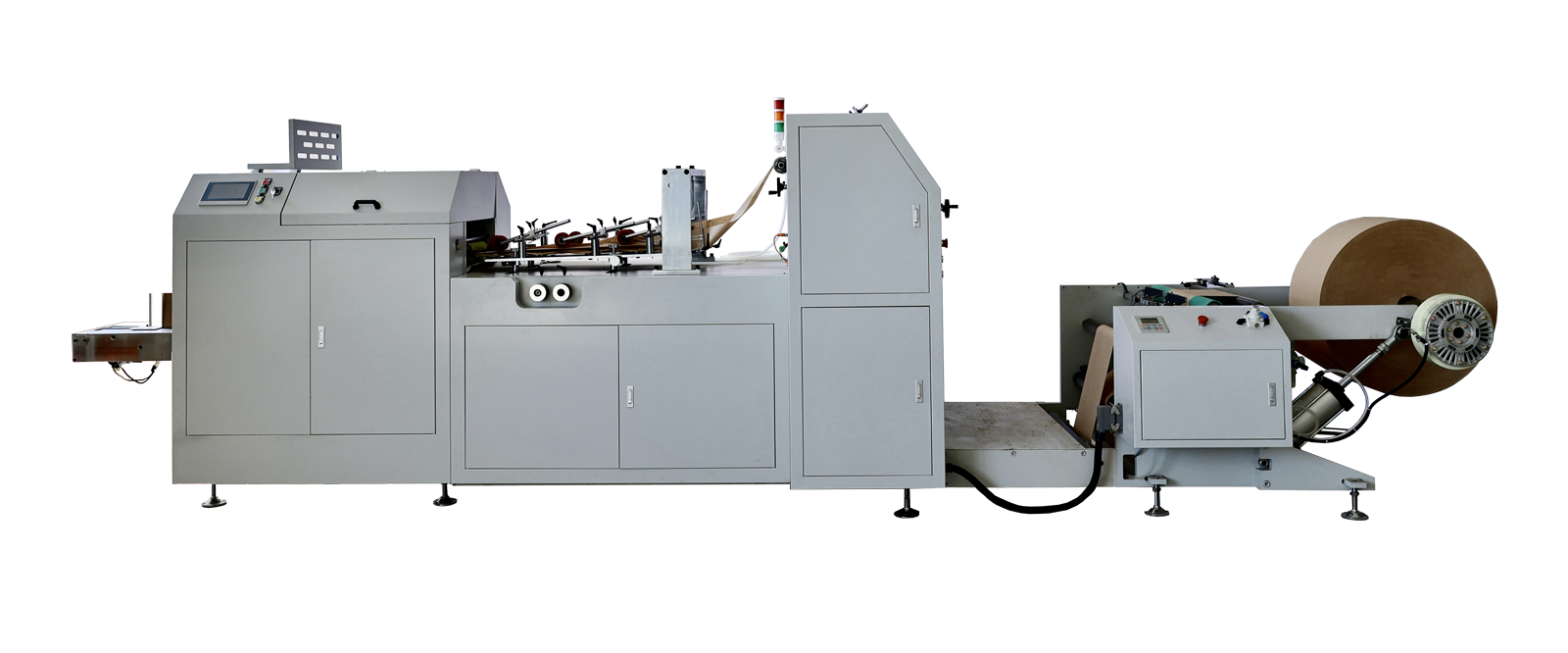

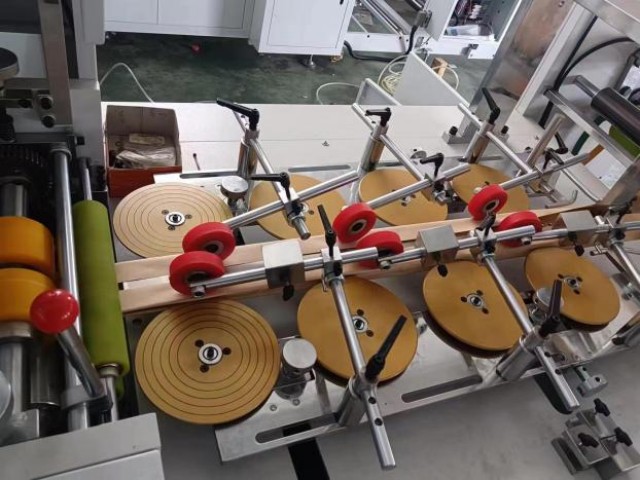

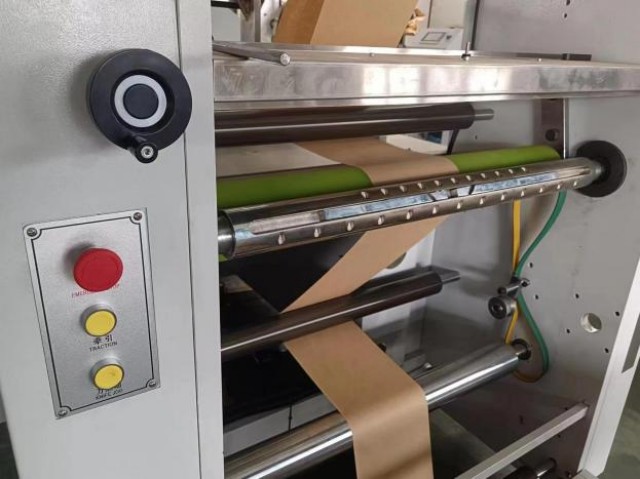

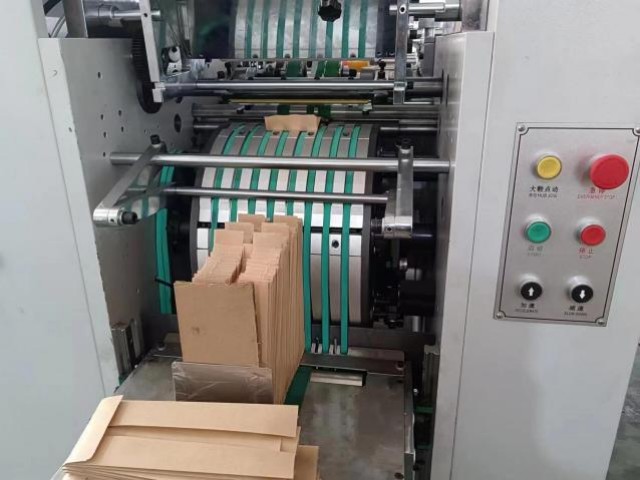

The LZ-JD260 is a fully automatic high-speed paper bag machine with side gusset forming. It processes kraft, striped kraft, slick, food coated and medical paper rolls — puncture, side gluing, edge folding, bag forming, cut off, bottom folding, bottom gluing and output in one cycle. Max speed 600 bags/min, bag width 80–250 mm, paper 45–80 g/m². Features Fanyi HMI, Mitsubishi motion controller with servo motors, SICK colour mark sensors and hydraulic roll loading. Ideal for snack, bread, dry fruit and eco-friendly paper bags.

The industry-standard choice for food and apparel shopping bag production. 200 bags/min mechanical speed, handles paper from 60–150 g/m², produces bags from 150–330 mm wide with 60–180 mm bottom gusset. Complete with Mitsubishi motion control, Weinview HMI touch screen, and 7 servo motors for precise, repeatable production.

The industry-standard choice for food and apparel shopping bag production. 200 bags/min mechanical speed, handles paper from 60–150 g/m², produces bags from 150–330 mm wide with 60–180 mm bottom gusset. Complete with Mitsubishi motion control, Weinview HMI touch screen, and 7 servo motors for precise, repeatable production.

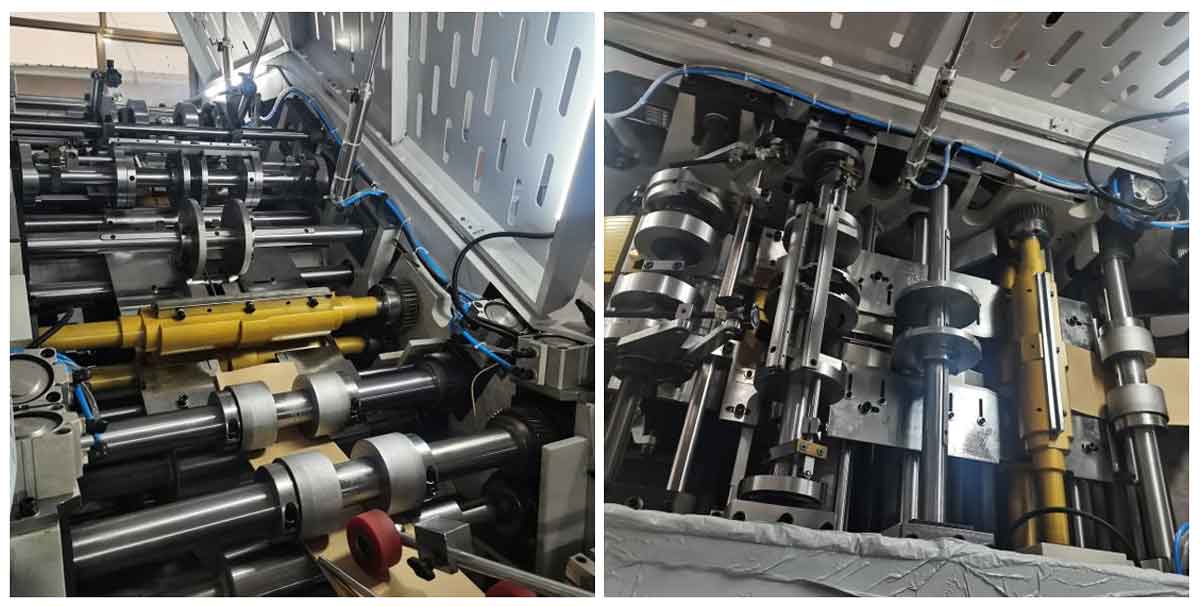

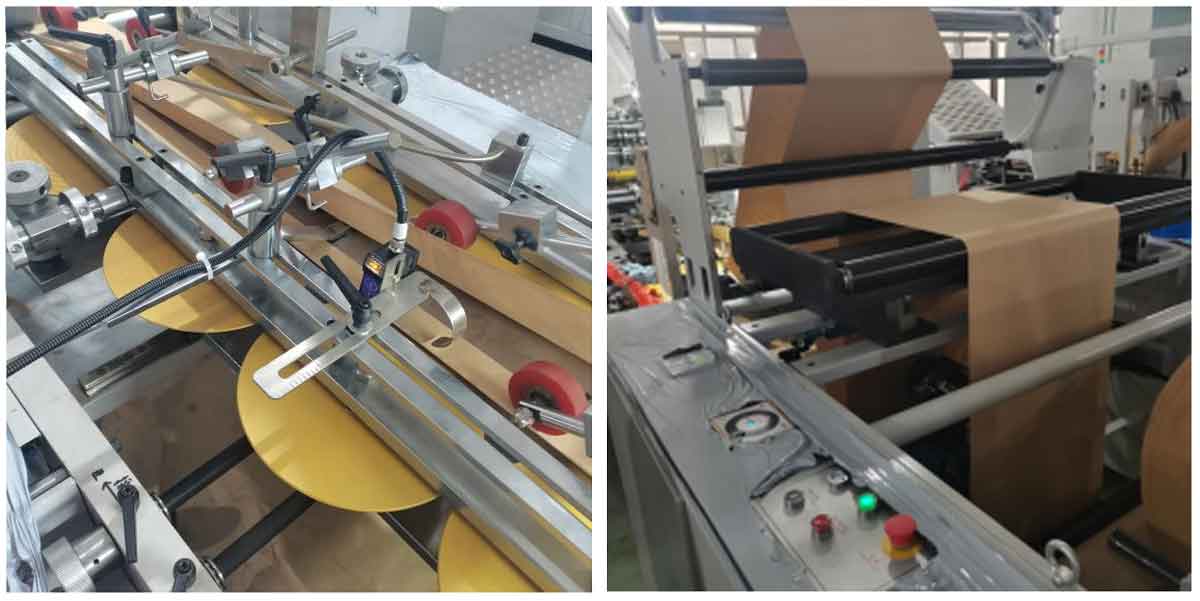

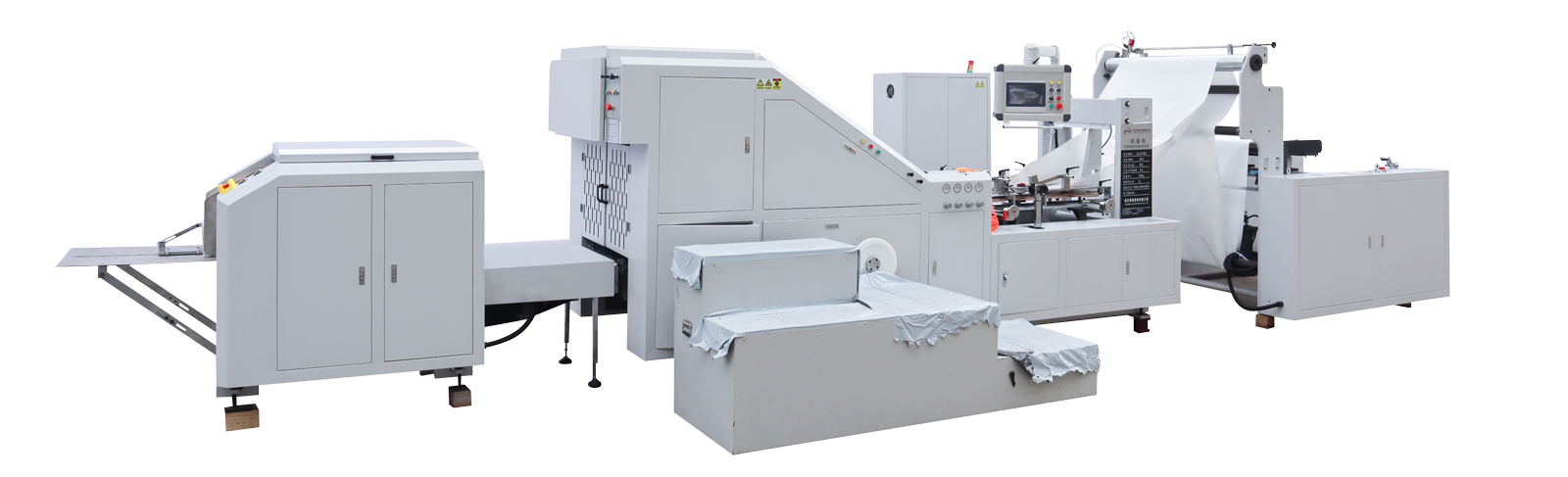

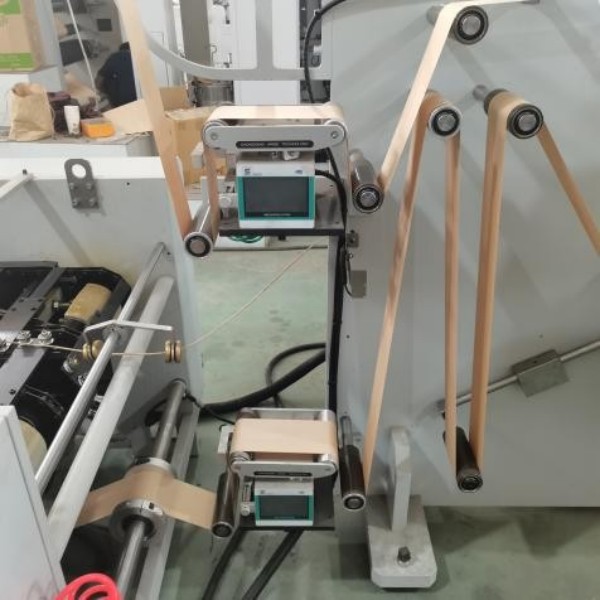

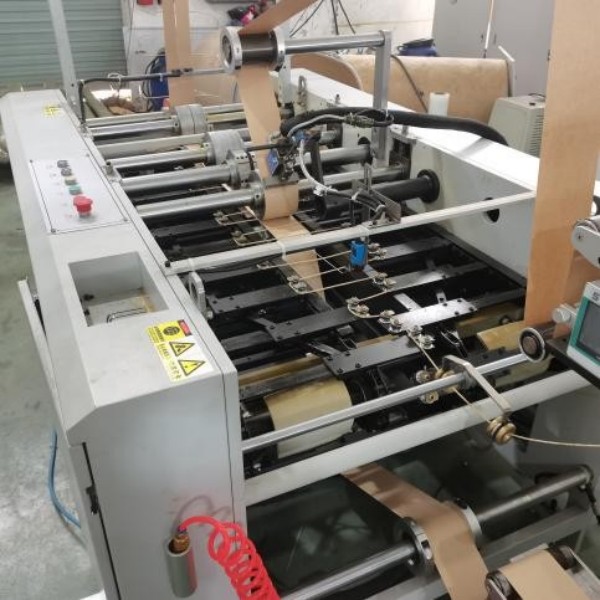

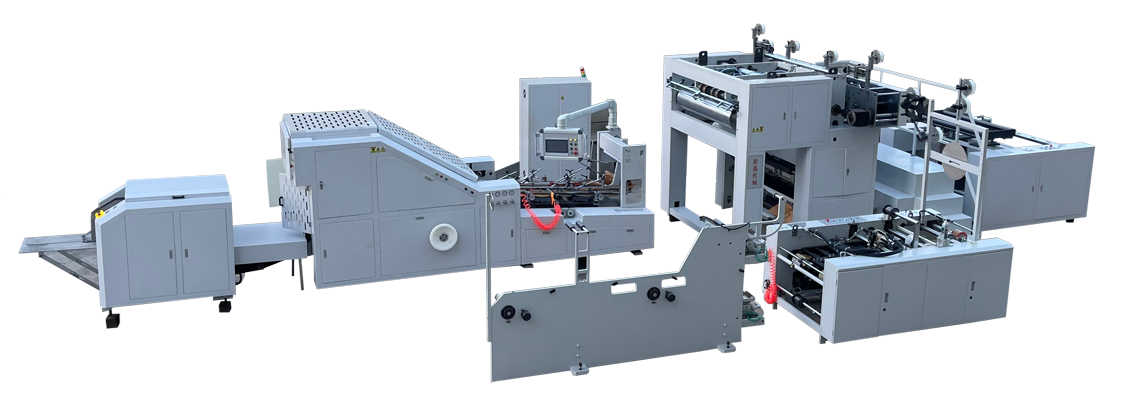

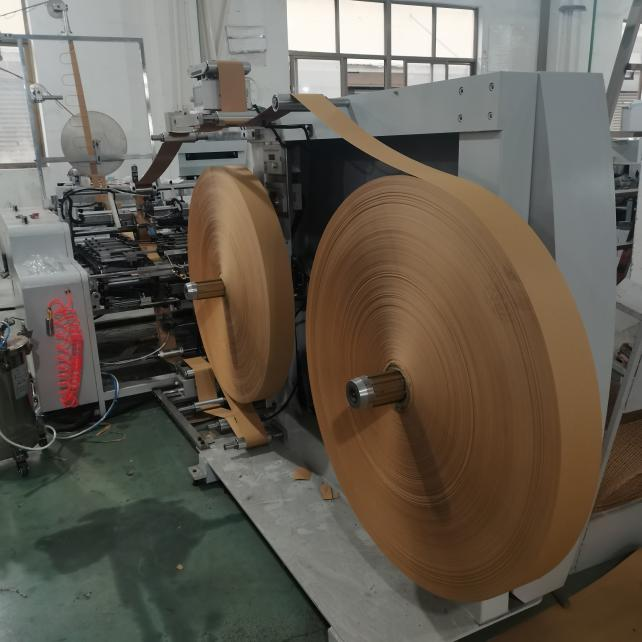

Fully automatic square bottom paper bag machine, used for producing portable paper bags with handles. This machine is especially suitable for mass production of shopping bags in industries such as food and clothing.

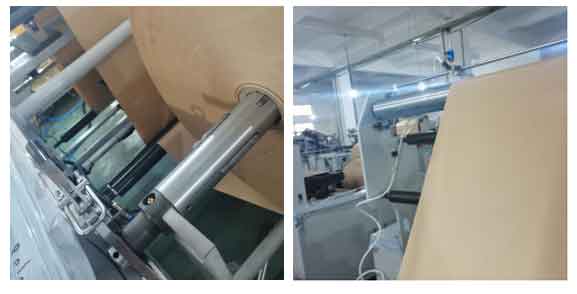

Rolling feed square bottom paper bag making machine — uses paper roll in blank or printed as raw material. Automatic centre gluing, tube forming, cutting, bottom indentation, folding, gluing, bag forming and collecting completed in one synchronized cycle.

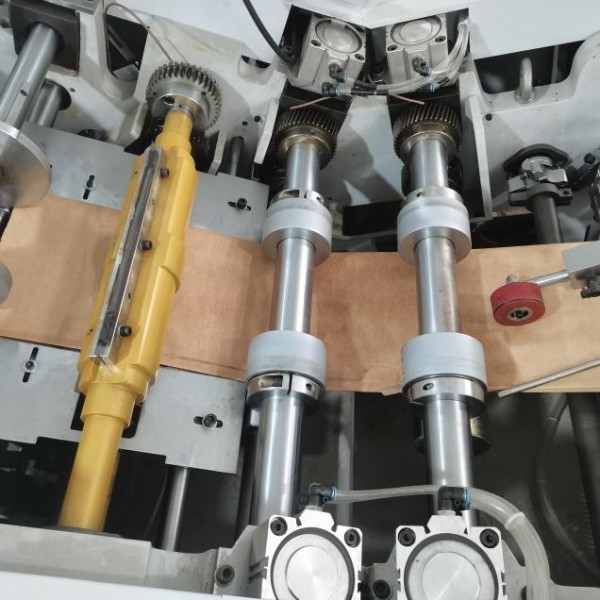

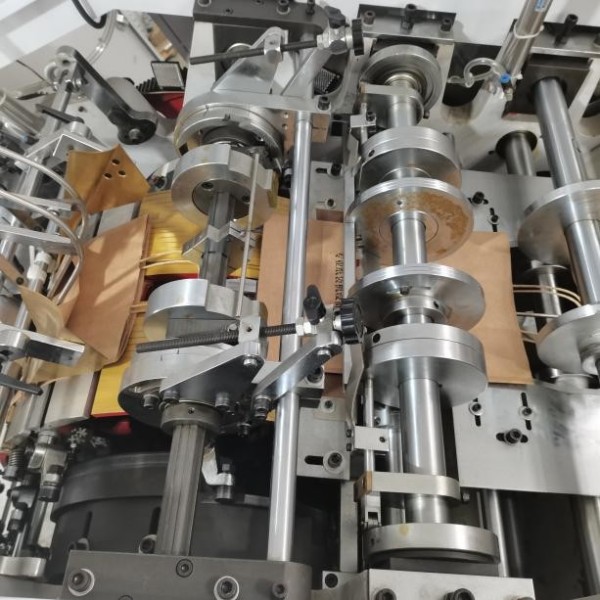

Full auto patch handle square bottom paper bag machine. 150 bags/min, 120-330mm width. Mitsubishi servo, SICK sensor. For bread, snack & dry fruit bags.

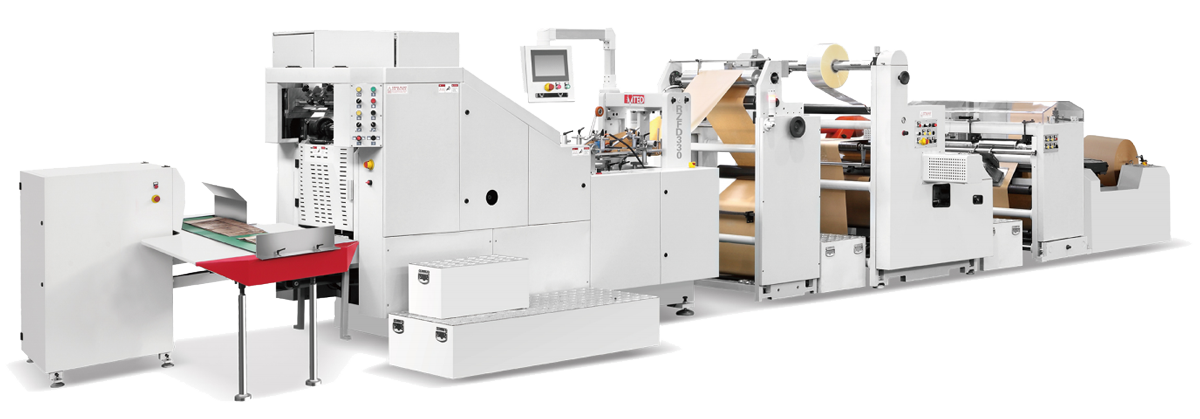

This LINZ PACK LZ-FD350W square bottom paper bag machine follows international quality standards. It features full safety covers with alarm stop function, supporting steady production of food, bread and nut bags. The modular structure enables independent operation of feeding, forming and sealing units, greatly boosting production efficiency while lowering manual cost. It fits 70-150gsm paper for stable long-run operation.
