Paper Bag Machine

Automatic Patch Die-Cut Square Bottom Paper Bag Machine | LZ-FD350D

Fully Automatic Patch Die-Cut Square Bottom Paper Bag Machine producing up to 120 bags/min for 120–330 mm bag widths. Mitsubishi servo, SICK sensor. For bread, snack & dry fruit bags. One-step forming, stable high speed, precise tracking, easy operation for eco-friendly paper bags.

GET A QUOTE · 12H REPLY VIEW FULL SPECIFICATIONS

QUICK FACTS · LZ-FD350D

Production Speed120 bags/min
Bag Width Range120–330 mm
Paper Weight80–150 g/m²
Servo Motors4 × Mitsubishi (Japan)
ControllerMitsubishi CPU
Total Power50.4 kW · 380V
Machine Weight10,000 Kg
Overview Process Flow Specifications Advantages Get Quote

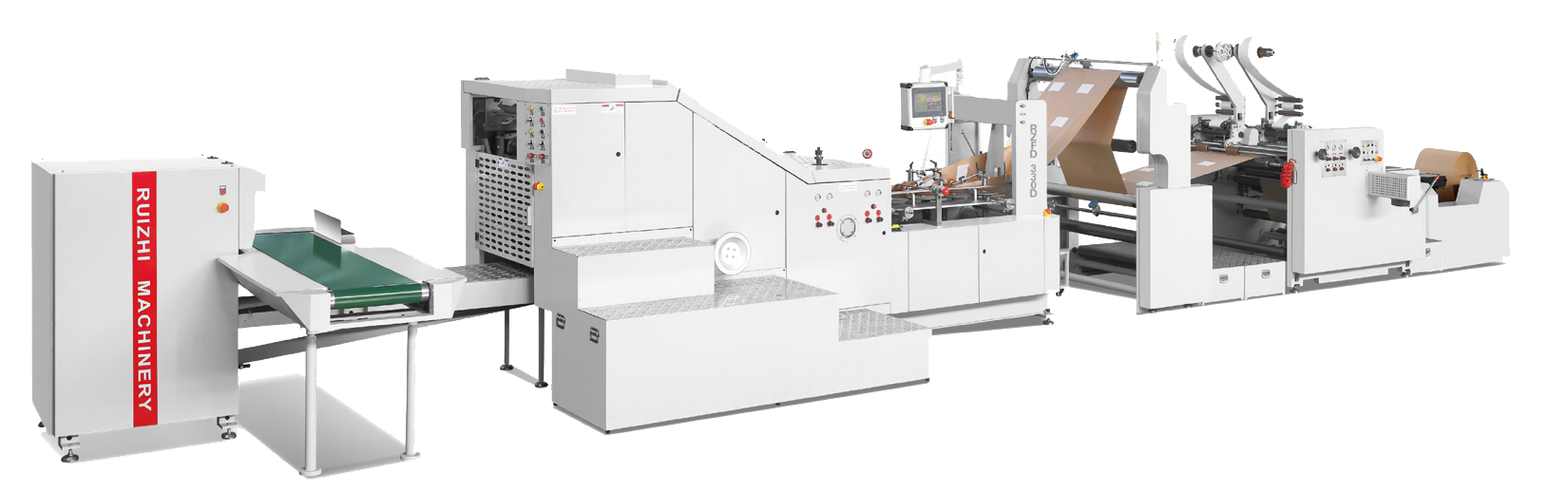

LZ-FD350D - Patch Die-cut Square Bottom Paper Bag Machine

One-step patch bag production, flexible material compatibility & steady running performance.

LZ-FD350D Patch Die-cut Bag

Square Bottom Paper Bag Machine

Full auto patch die-cut square bottom paper bag machine. 120 bags/min, 120-330mm width. Mitsubishi servo, SICK sensor. For bread, snack & dry fruit bags.

120–330 mm Bag Width
80–150 g/m² Paper Range
120 bags/min Max Speed
50.4kw · 380V Total Power
10,000 Kg Machine Weight
15000*4200*2000 Dimension (mm)
REQUEST A QUOTE → COMPARE MODELS

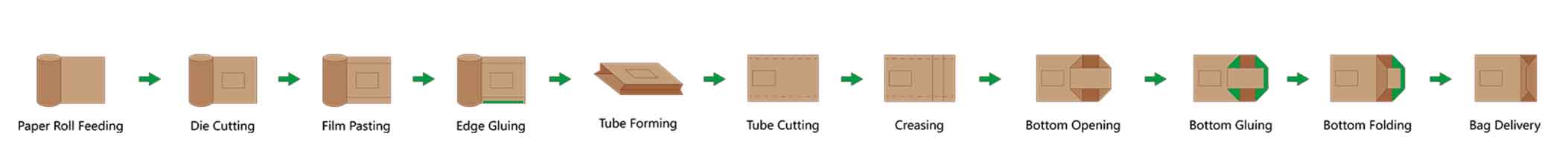

Paper Bag Forming Process

8 fully automated steps from roll stock to finished bag — all in one continuous pass.

Main Technical Parameters

Parameter Specification
Model LZ-FD350D
Cutting Length 270 – 530 mm
Paper Bag Width 120 – 330 mm

Patch Width

 50 – 120 mm

Patch Height

 50 – 120 mm
Bag Bottom Width 60 – 180 mm

Patch Bag Width

 190 – 330 mm

Patch Bag Handle Hole Diameter

 75 / 85 mm

Patch Bag Paper Weight

 80 – 150 g/m²

Patch Film Thickness

 40 – 70 µm

Patch Material Roll Width

 130 mm
Mechanical Speed 30 – 200 pcs/min

Patch Bag Production Speed

 30 – 120 pcs/min
Paper Roll Width 380 – 1050 mm

Paper Roll Outer Diameter

 1200 mm
Total Power 50.4 kW
Power Supply 380V, 3Phase 4Wire, 50 Hz
Machine Weight 10,000 kg (10 T)

Overall Dimensions (L×W×H)

 15,500 × 4,200 × 2,000 mm

Core Advantages

Key Advantages of the LZ-FD350D

Automatic Square Bottom Forming

Integrates key bag forming processes for efficient production of square bottom paper bags.

Stable Paper Feeding

Controlled paper feeding and web handling help maintain consistent material movement during production.

Precision Bag Forming

Coordinated forming and control systems support accurate bag dimensions and stable production quality.

Flexible Bag Sizes

Supports a range of square bottom bag sizes for food, retail and general packaging applications.

Reliable Industrial Components

Selected electrical and mechanical components support stable operation and routine maintenance.

Easy Machine Operation

A clear control interface simplifies machine setup, parameter adjustment and daily operation.
