Paper Bag Machine

Automatic Paper Cup Forming Machines

Reliable LZ-GC paper cup machines: 2 models cover 3-22oz, 50-120pcs/min, single-aluminum-disk, ultrasonic welding, low failure, easy training, custom molds.

GET A QUOTE · 12H REPLY VIEW FULL SPECIFICATIONS

QUICK FACTS · LZ-GC SERIES

Max Production Speed50–120 pcs/min
Cup Size Range3–22 oz
Paper Weight150–300 g/m² (single/double PE)
Drive SystemSingle Main Motor + Gear & Cam
ControllerPLC + Photoelectric Tracking
Total Power7 kW · 380V 3-Phase
Machine Weight1,700–2,000 Kg
Overview Process Flow Specifications Advantages Get Quote

Why Choose This Machine

This gear-driven paper cup machine supports stable 3–22 oz cup production with a streamlined mechanical structure and straightforward operation.

LZ-GC9/GC22 Gear Paper

Gear Paper Cup Machine

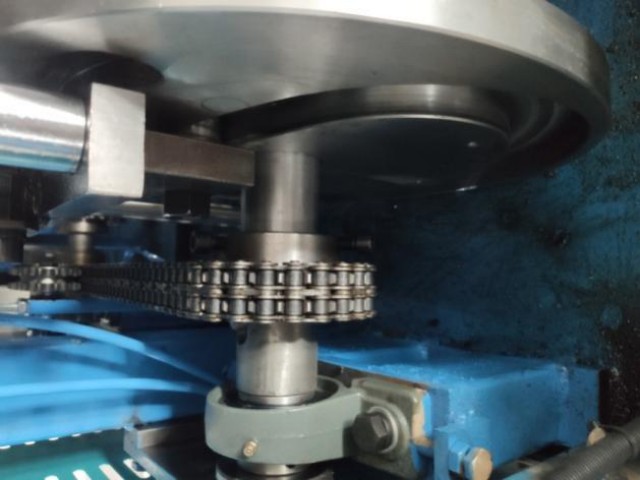

This single-motor paper cup machine integrates gear and cam drive for smooth operation. Its single-aluminum-disk structure simplifies the transmission layout and supports easier maintenance and operation.. Producing 3–22 oz single/double PE cups at 50–120 pcs/min, it automates feeding, welding, transfer, bottom forming, knurling, and discharge. Built with in‑house stability upgrades, it also accepts custom molds for flexible production.

50–120 pcs/min Speed
150–350 g/m² Paper Weight
3–22 oz Cup Size
5.5–7 kW Power
1,350–2,000 Kg Weight
2300×1200×1800 Dimension (mm)
REQUEST A QUOTE → COMPARE MODELS

Paper Cup Packaging Solutions

High-output automatic paper cup machine with consistent quality for hot and cold beverages.

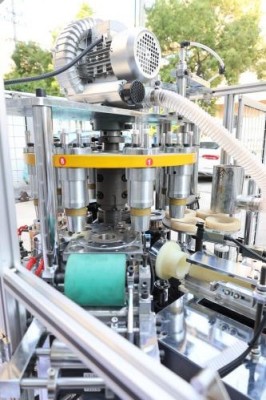

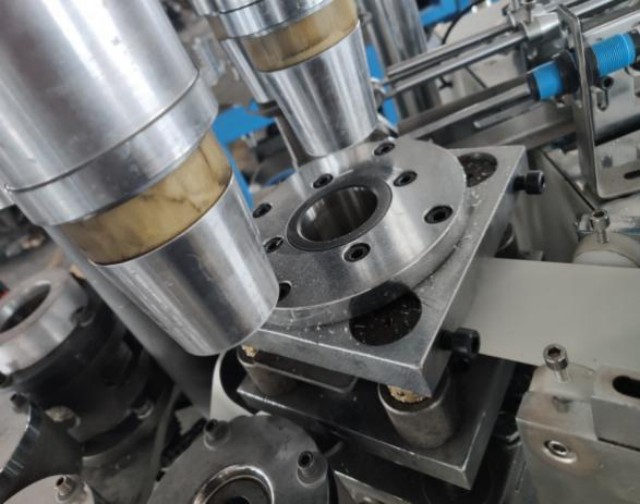

Precision Engineering Close-Up

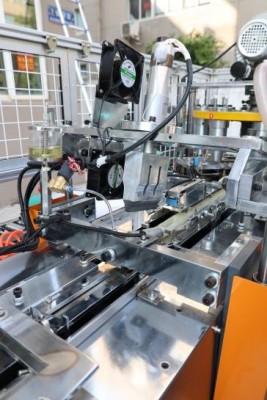

From the single aluminum disk to the ultrasonic welding unit, every component is built for durability, reduced downtime, and consistent cup quality over years of operation.

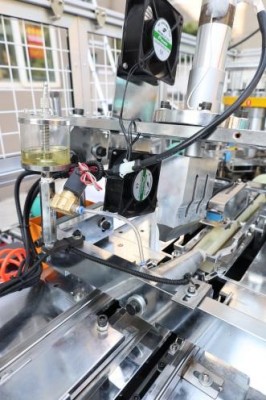

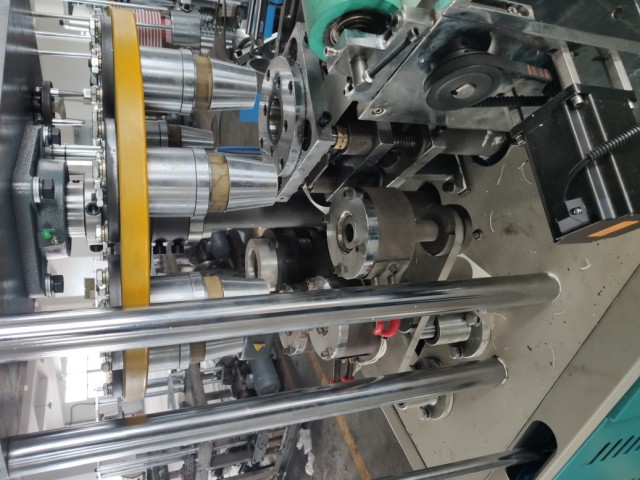

Precision Engineering Close-Up

From the single aluminum disk to the ultrasonic welding unit, every component is built for durability, reduced downtime, and consistent cup quality over years of operation.

Specification Comparison — LZ-GC9/GC22

Molds can be customized according to customer requirements at extra cost

Parameter LZ-GC9 LZ-GC22
Production Speed 100 – 120 pcs/min 50 – 70 pcs/min
Paper Cup Size 3 oz – 9 oz 16 oz – 22 oz
Paper Type 150 – 300 g/m² Single PE 150 – 300 ±20 g/m² Single & Double PE
Cup Body Sealing — Ultrasonic
Bottom Knurling — Air‑Blown Heating
Total Power 7 kW 7 kW
Power Supply 380V, 3Phase 4Wire, 50 Hz 380V, 3Phase 4Wire, 50 Hz
Required Air Pressure — 0.6 – 0.8 MPa; 0.4 m³/min
Cup‑collecting Dimensions (L×W×H) 900 × 600 × 1,800 mm 900 × 600 × 1,800 mm
Tota Weight 1,700 kg 2,000 kg
Overall Dimensions (L×W×H) 2,150 × 1,100 × 1,950 mm 2,300 × 1,200 × 1,800 mm

Core Advantages

Key Advantages of the LZ-GC9 / GC22

Gear-Driven Transmission

Gear and cam transmission provides stable mechanical movement for continuous paper cup production.

Proven Mechanical Design

A mature mechanical structure supports stable operation and reliable production performance.

Stable Cup Forming

Optimized forming mechanisms support consistent sealing and uniform cup dimensions.

Intelligent PLC Control

PLC and touch-screen controls simplify machine operation and parameter adjustment.

Automatic Lubrication

Automatic lubrication supports smooth mechanical operation and helps maintain long-term machine performance.

Wide Cup Size Range

Supports 3–22 oz paper cups for different hot and cold beverage applications.
