Paper Bag Machine

Automatic Gear-Driven Paper Cup Machine

This series offers two gear‑cam cup machines with single motor and single aluminum disk – low failure, easy training. LZ-GC16(08) (8‑station) runs 70‑90 pcs/min; LZ-GC16(10) (10‑station, 5 heaters) runs 90‑120 pcs/min. Both make 3‑16 oz cups in PE. Full automation from feeding to discharge. Custom molds available.

GET A QUOTE · 12H REPLY VIEW FULL SPECIFICATIONS

QUICK FACTS · LZ-GC16(08)/(10)

Production Speed70–120 pcs/min (model dependent)
Cup Size Range3–16 oz
Paper Weight150–350 g/m²
Drive SystemSingle Motor + Gear‑Cam
ControllerPLC + Photoelectric Tracking
Total Power7 kW · 380V 3‑Phase
Machine Weight1,750–2,100 Kg
Overview Process Flow Specifications Advantages Get Quote

Why Choose This Machine

Low-fault gear paper cup forming machine supports 3-16oz cup production with stable running and simple operation.

LZ-GC16(08)/(10) 8/10‑station

Gear Cup Machine Series

This series includes two gear‑cam driven paper cup machines, both powered by a single main motor and equipped with a single aluminum disk to reduce failures and training time. The LZ-GC16(08) (8 stations) runs at 70‑90 pcs/min, while the LZ-GC16(10) (10 stations with 5 heating groups) reaches 90‑120 pcs/min. Both produce 3‑16 oz cups with single/double PE. Fully automated processes cover feeding, ultrasonic/copper welding, bottom forming, knurling, and discharge. Custom molds are available for each model, offering flexible production solutions.

70–120 pcs/min Speed
150–350 g/m² Paper Weight
3–16 oz Cup Size
7 kW Power
1,750–2,100 Kg Weight
2800 × 1250 Dimension (mm)
REQUEST A QUOTE → COMPARE MODELS

Paper Cup Packaging Solutions

High-output automatic paper cup machine with consistent quality for hot and cold beverages.

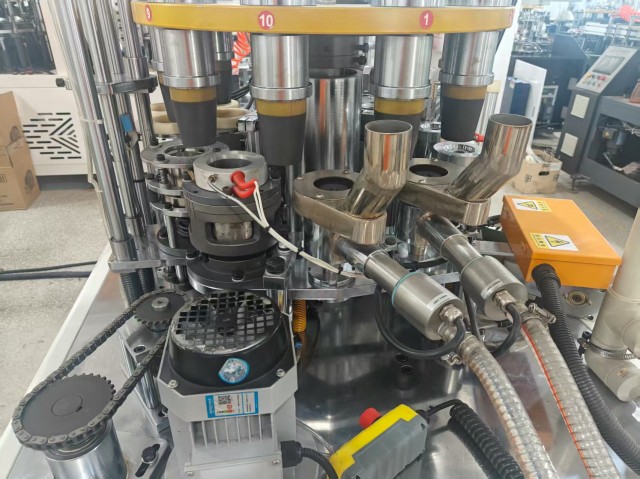

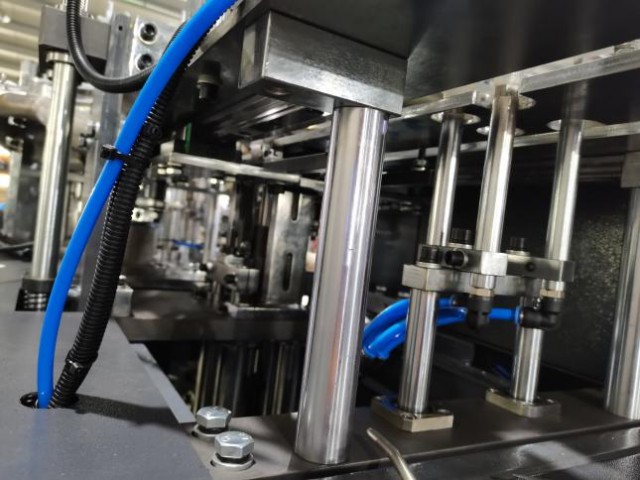

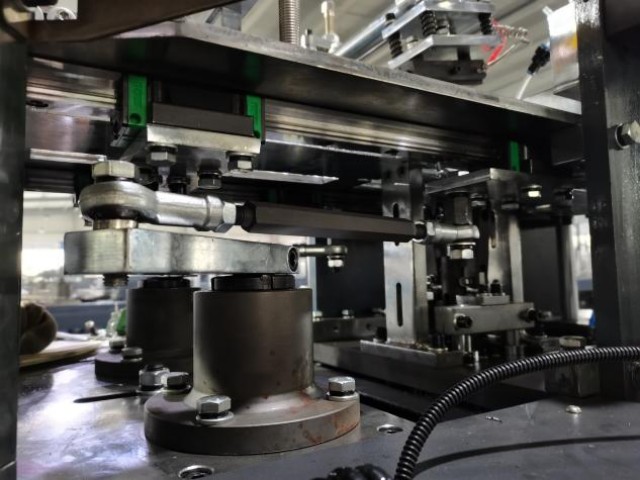

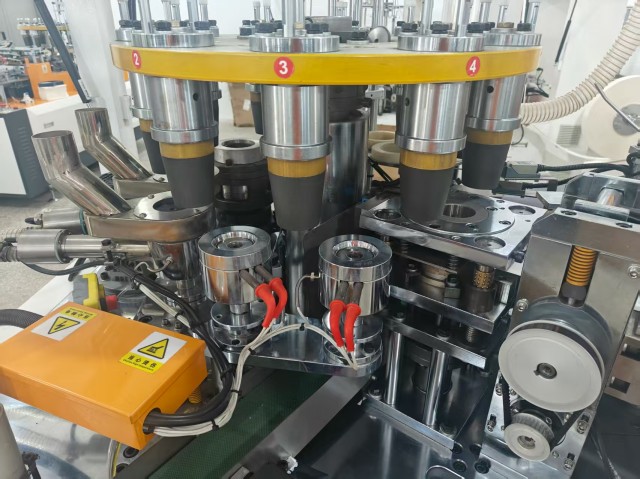

Precision Engineering Close-Up

From the single aluminum disk to the ultrasonic welding unit, every component is built for durability, reduced downtime, and consistent cup quality over years of operation.

Specification Comparison — LZ-GC16(08)/(10)

Molds can be customized according to customer requirements at extra cost.

Parameter LZ-GC16(08) LZ-GC16(10)
Production Speed 70 – 90 pcs/min 90 – 120 pcs/min
Paper Cup Size 3 oz – 16 oz 3 oz – 16 oz
Paper Thickness 150 – 350 g/m²   ±20 g/m² 150 – 350 g/m²   ±20 g/m²
Material Requirements Single & Double PE coated paper Single & Double PE coated paper
Cup Body Bonding Method Ultrasonic Ultrasonic / Copper strip (ultrasonic for cups over 12 oz)

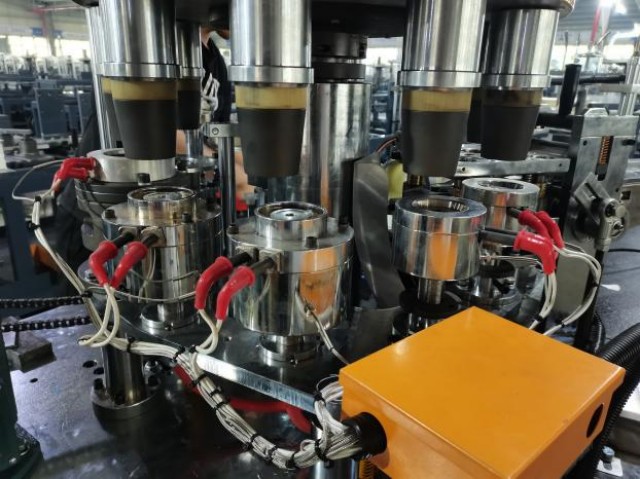

Bottom Knurling Method Hot Air Blowing Bottom heating (5 heating groups)
Customization — Molds customizable upon request
Voltage 380V / 50Hz   3-Phase 380V / 50Hz   3-Phase
Power 7 kW 7 kW
Gas Supply 0.6 – 0.8 MPa   0.4 m³/min 0.6 – 0.8 MPa   0.4 m³/min
Collection Rack Size (L×W×H) — 900 × 600 × 1,800 mm
Machine with Rack Size (L×W×H) 2,800 × 1,250 × 1,900 mm   2,100 kg —
Machine Weight 1,750 kg (net) / 2,000 kg (with crate) 2,100 kg
Machine Package Size (L×W×H) 2,200 × 1,250 × 1,900 mm 2,180 × 1,050 × 1,600 mm

Core Advantages

Key Advantages of the LZ-GC16(08) / LZ-GC16(10)

High-Speed Production

Produces up to 120 cups per minute for stable paper cup production.

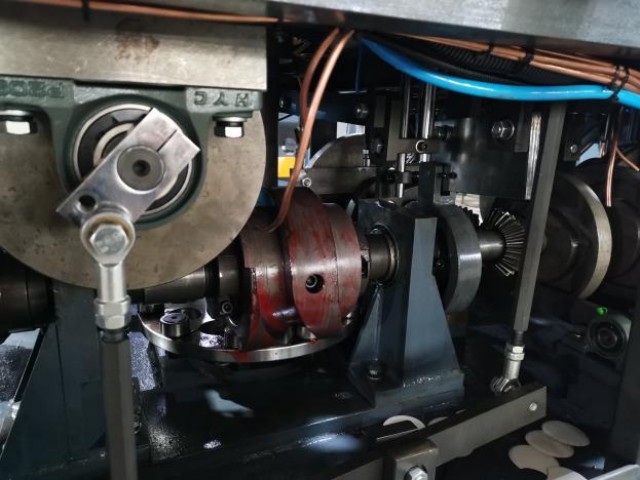

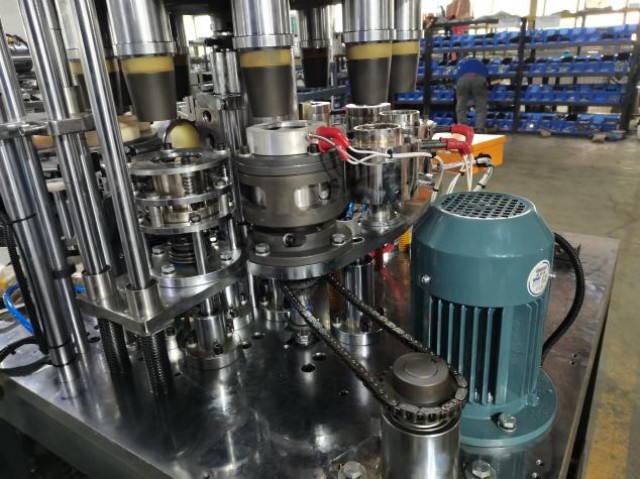

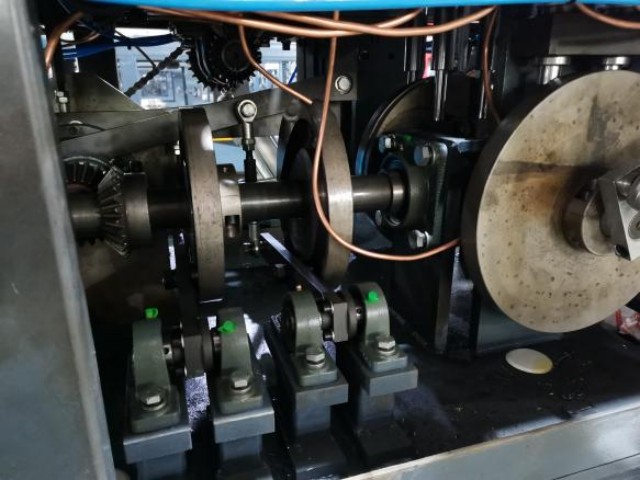

Gear-Driven Technology

Gear and cam transmission provides stable mechanical movement and reliable continuous operation.

Single Aluminum Disc

A single aluminum disc structure simplifies transmission design and supports easier maintenance.

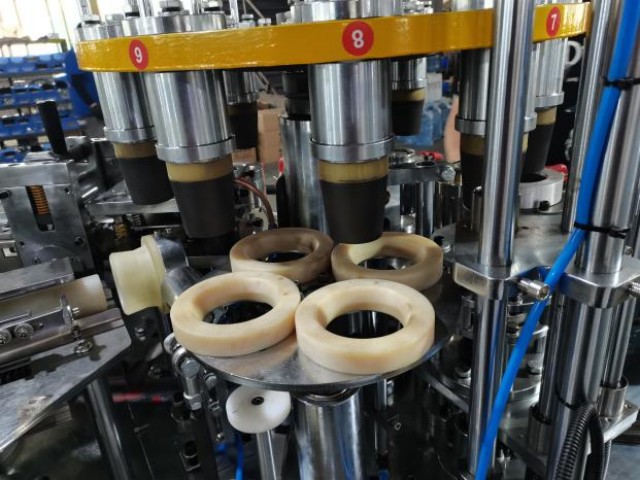

Multi-Station Forming

Eight or ten forming stations support continuous cup forming for efficient production.

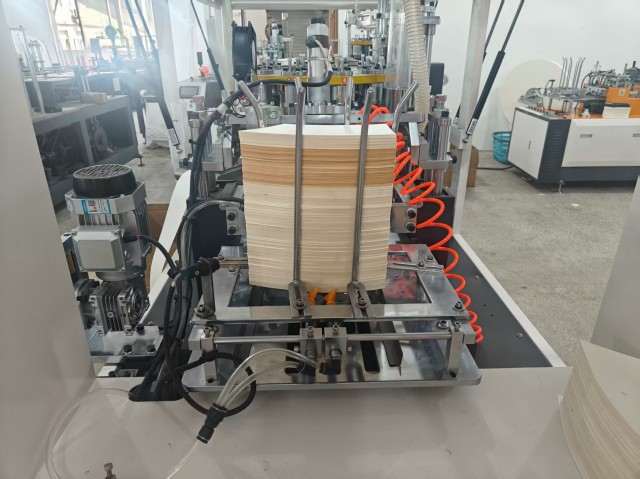

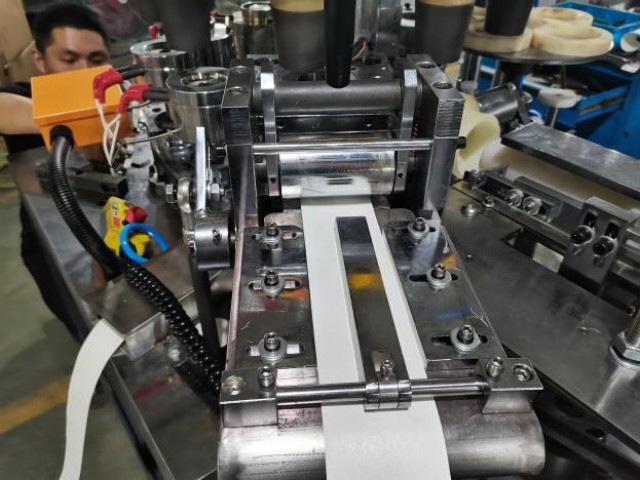

Accurate Cup Positioning

Controlled paper feeding and forming support consistent cup positioning and forming accuracy.

Wide Cup Size Compatibility

Supports 3–16 oz paper cups for different hot and cold beverage applications.
