Why Choose This Machine
Cross-validated by customer deployments across food and apparel packaging industries. The sweet spot for most bag makers.
Paper Bowl Packaging Solutions
Fully automatic paper bowl production with lid compatibility and leak-proof coating options.

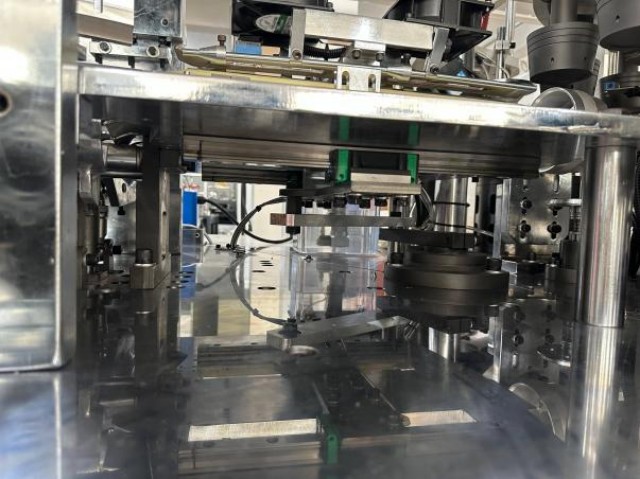

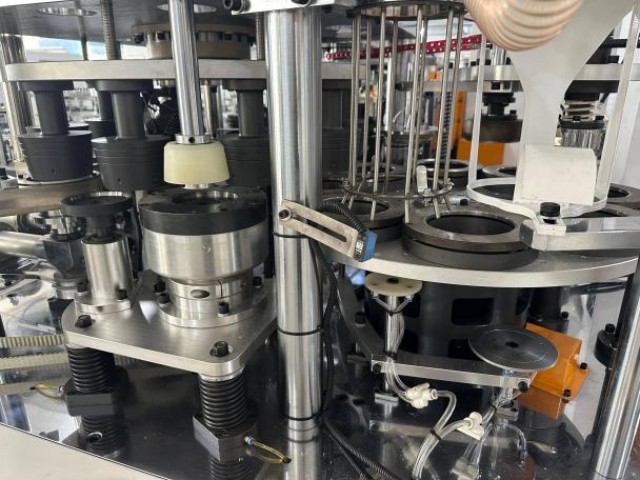

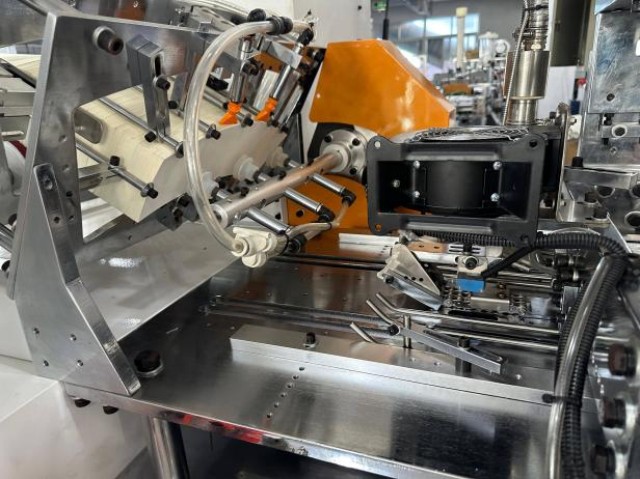

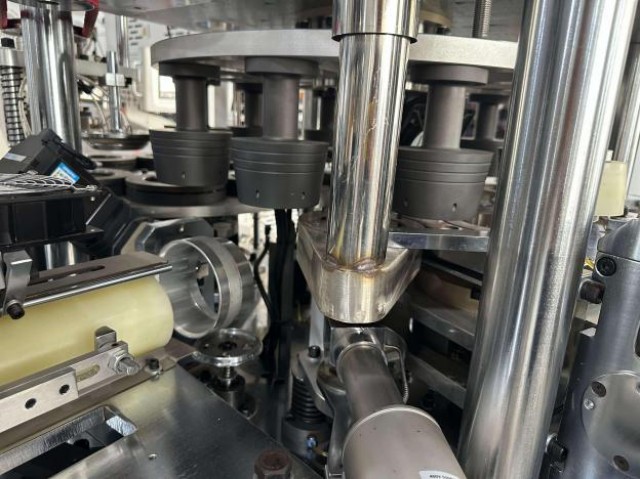

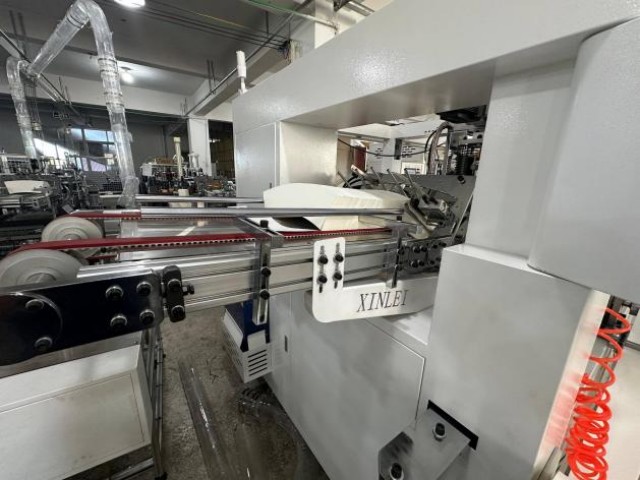

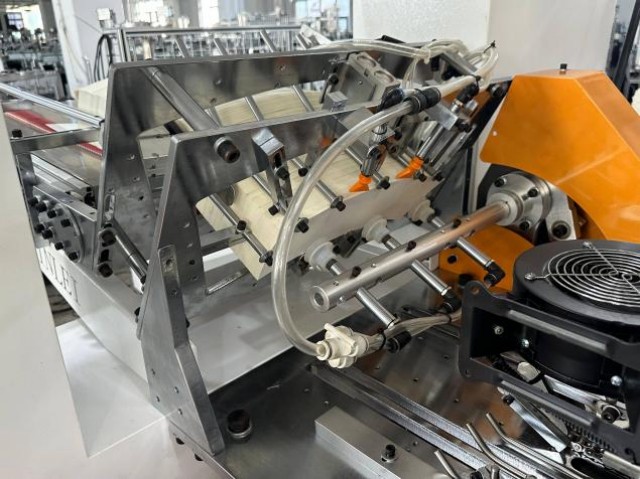

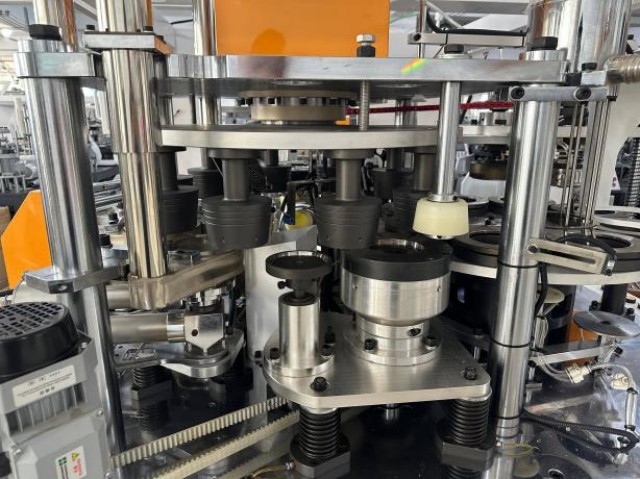

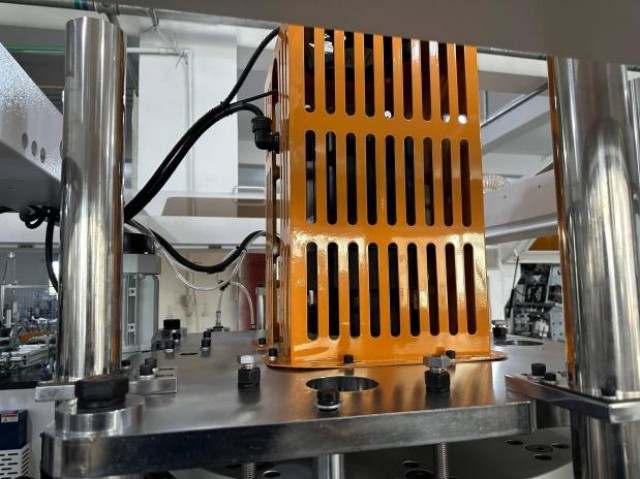

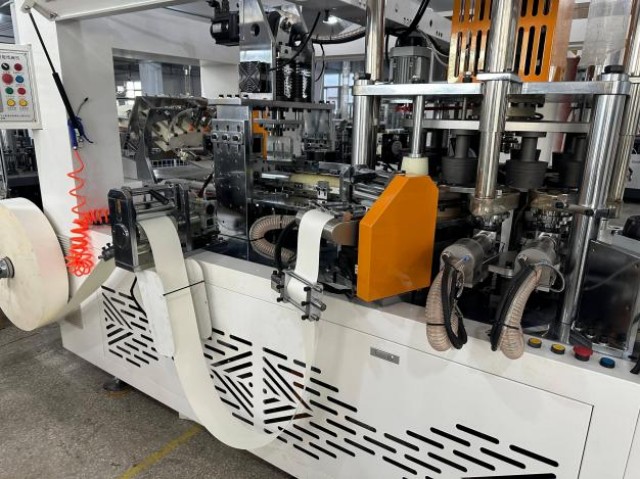

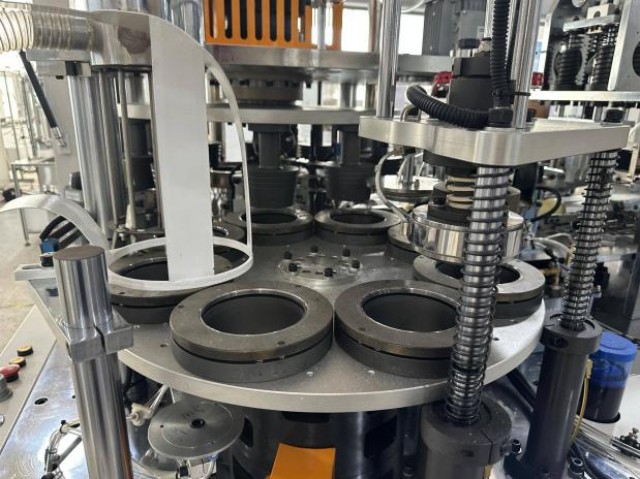

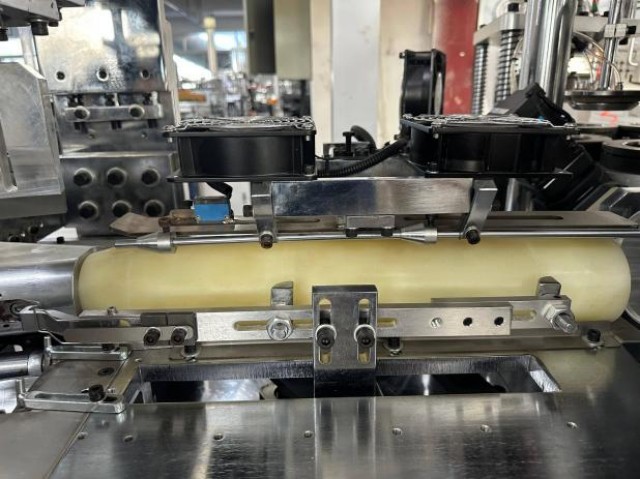

Precision Engineering Close-Up

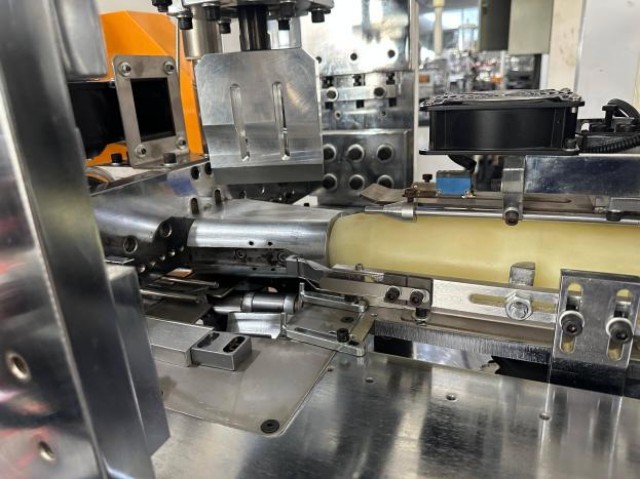

From the single aluminum disk to the ultrasonic welding unit, every component is built for durability, reduced downtime, and consistent cup quality over years of operation.
Specification Comparison — LZ-SB36/LZ-SB55
| Parameter | LZ-SB36 | LZ-SB55 |
|---|---|---|
| Production Capacity | 130 – 150 pcs/min | 80 – 100 pcs/min |
| Paper Type | Single & Double PE / PLA | Single & Double PE / PLA |
| Paper GSM | 210 – 330 g/m² | 210 – 330 g/m² |
| Bowl Mouth Diameter (D1) | φ100 – 150 mm | φ150 – 185 mm |
| Bowl Bottom Diameter (D2) | φ75 – 128 mm | φ125 – 165 mm |
| Bowl Height (H) | 60 – 135 mm | 55 – 80 mm |
| Bottom Depth (h) | 5 – 10 mm | 5 – 10 mm |
| Control Panel | 10-inch Touch Screen | 10-inch Touch Screen |
| Detection Device | Optional | Optional |
| Power Configuration | 380V / 3Ph 35 kW | 380V / 3Ph 35 kW |
| Compressed Air | 0.6 – 0.8 MPa 0.5 m³/min | 0.6 – 0.8 MPa 0.5 m³/min |
| Collection Table (L×W×H) | 1,000 × 650 × 1,600 mm | 1,000 × 650 × 1,600 mm |
| Weight | 4,500 kg | 5,500 kg |
| Packing Dimensions (L×W×H) | 3,250 × 1,900 × 1,950 mm | 3,300 × 2,000 × 1,950 mm |
Core Advantages
choose our paper bag machine for your production line.
High-Speed Production
Produces up to 130–150 bowls/min (LZ-SB36) and 80–100 bowls/min (LZ-SB55) for efficient large-scale manufacturing.
Desktop Layout for Easy Maintenance
Transmission parts are under the table and molds are on top, facilitating cleaning and maintenance.

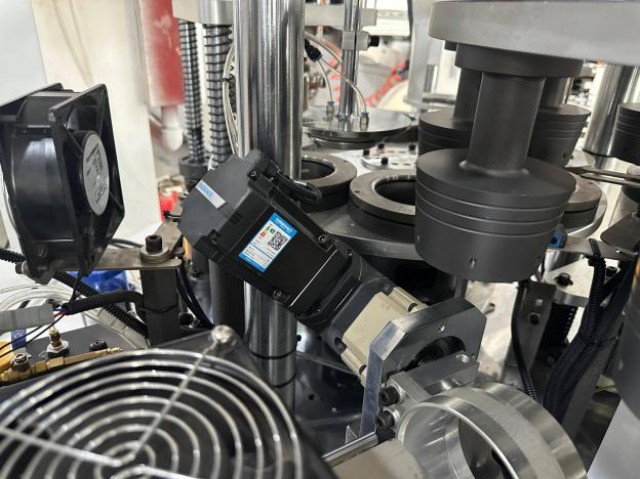

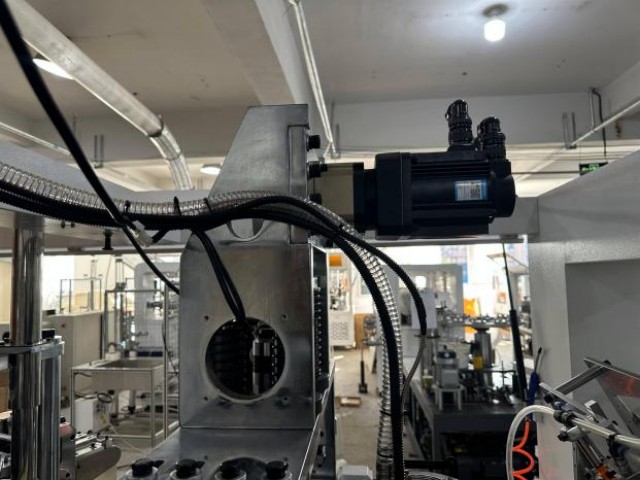

Servo & Gear Transmission
Servo-controlled gear transmission ensures smooth, stable operation and precise bowl forming.
Intelligent PLC & Touchscreen Control
10-inch touchscreen with PLC allows easy operation, parameter backup, and fault diagnostics.
Smart Temperature Control
PLC PID heating automatically sets target temperature according to paper type, weight, and single/double PE, ensuring consistent sealing.
Automatic Fault Handling
Automatically removes bowls after abnormal stops, preventing material waste and damage.
Optional Vision Inspection
Automatically detects defects in bowl shape, bottom, or interior and removes them, ensuring high-quality output.
Wide Material Compatibility
Compatible with Single PE, Double PE, and PLA coated paper for eco-friendly production.

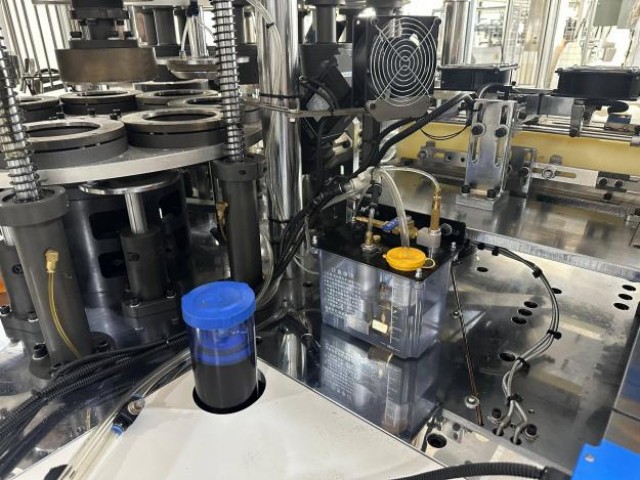

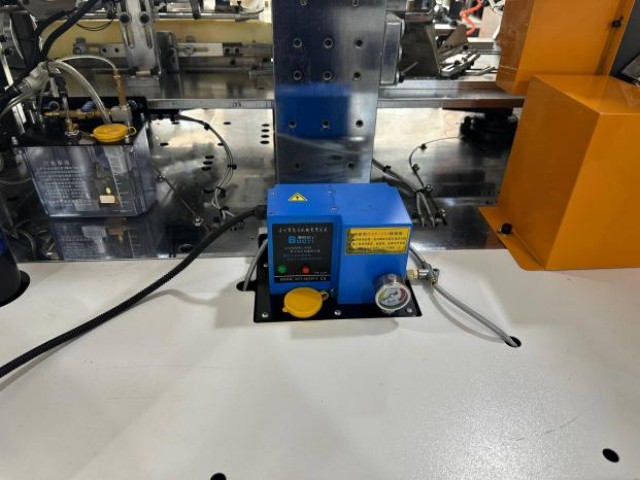

Automatic Lubrication System
Ensures long-lasting mechanical performance and reduces maintenance needs.
Let Linz Pack take your business to the next level right now!
It's not just about having a great machine — it's about having a trusted, seasoned supplier who helps you build your production line and grow your profits. Let Linz Pack help you win.
