Paper Bag Machine

Automatic Gear-Driven Paper Bowl Machine | LZ-GB35(08)/(10)

10‑station & medium‑speed paper bowl machines, 12‑35oz, 60‑100 pcs/min, steel body, PLC control, custom molds.

GET A QUOTE · 12H REPLY VIEW FULL SPECIFICATIONS

QUICK FACTS · LZ-GB35(08)/(10)

Production Speed60–100 pcs/min (model dependent)
Bowl Size Range12–35 oz (custom tooling available)
Paper GSM140–350 g/m² (PE coated)
Drive SystemIntegral Steel Body + Oily Lubrication
ControllerPLC Control
Total Power15 kW · 380V 50Hz
Machine Weight2,500–2,800 Kg
Overview Process Flow Specifications Advantages Get Quote

Why Choose This Machine

Designed for Stable Gear-Driven Paper Bowl Production

LZ-GB35(08)/(10) PLC Control

Paper Bowl Machine

This series offers two robust paper bowl forming machines built with integral steel plate bodies and oil‑type lubrication systems for long‑term stable operation. The high‑speed 10‑station model delivers 80‑100 pcs/min for 12‑35 oz bowls (T:90‑150mm, B:70‑128mm, H:50‑125mm), while the medium‑speed model runs 60‑70 pcs/min. Both handle single/double PE paper at 140‑350 g/m², with PLC control, 15kW power, and 380V/50Hz. Custom size tooling available per user requirements, with comprehensive automation from feeding to discharge.

60–100 pcs/min Speed
140–350 g/m² Paper Weight
12–35 oz Bowl Size
15 kW Power
2,500–2,800 Kg Weight
3400x1600x1850 Dimension (mm)
REQUEST A QUOTE → COMPARE MODELS

Paper Bowl Packaging Solutions

Fully automatic paper bowl production with lid compatibility and leak-proof coating options.

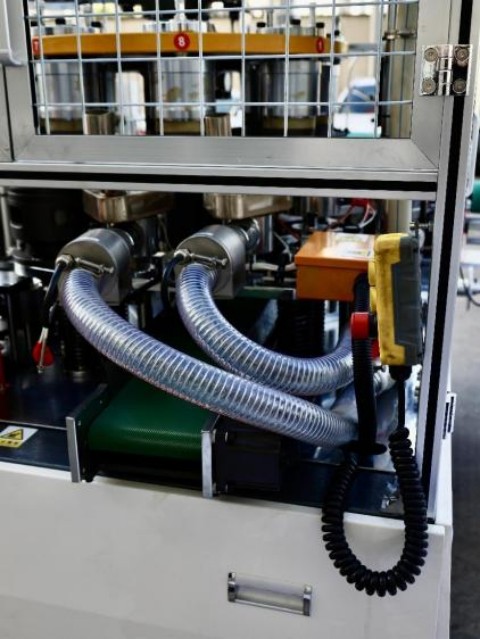

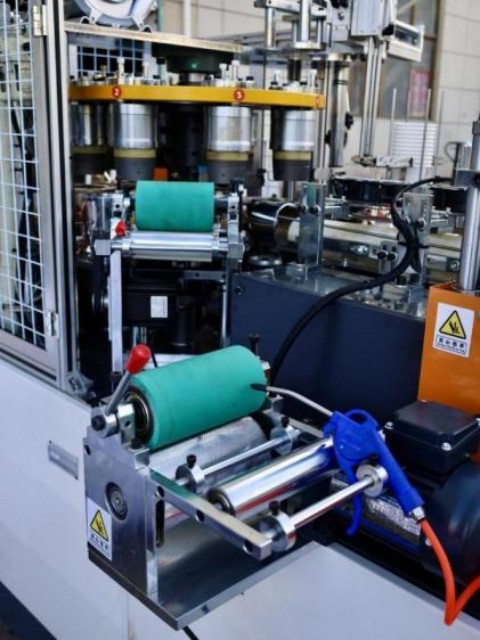

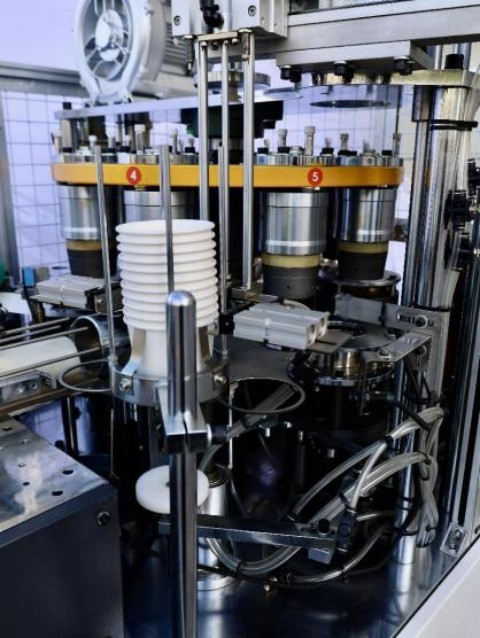

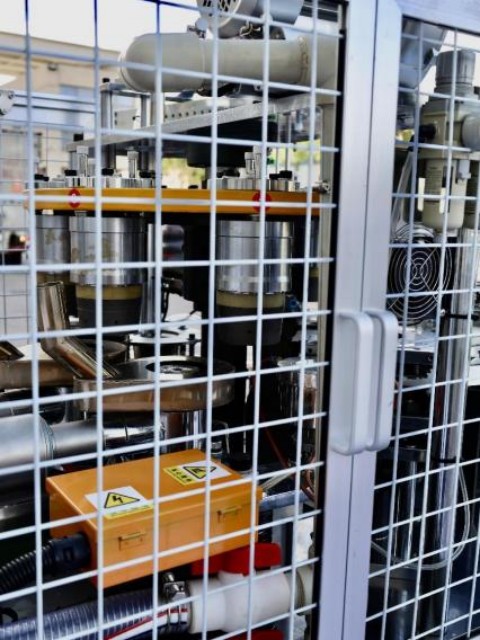

Precision Engineering Close-Up

The integral steel body, gear-driven transmission and oil lubrication system are designed for stable paper bowl production and long-term machine operation.

Main Technical Parameters — Full Comparison.

Choose the right configuration for your production requirements. Both models share the same core technology platform.

Parameter 8-StationPaper Bowl Molding Machine 10-Station Paper Bowl Machine
Speed 60 – 70 pcs/min 80 – 100 pcs/min
Production Scope 12 oz – 35 oz (replaceable per customer request) 12 oz – 35 oz (replaceable per customer request)
Raw Material Single & Double PE coated paper Single & Double PE coated paper
Paper Weight 140 – 350 g/m² 180 – 350 g/m²
Voltage 380V / 50Hz 380V / 50Hz
Total Power 15 kW 15 kW
Air Pressure Requirements 0.6 MPa   0.6 m³/min 0.6 MPa   0.6 m³/min
Weight 2,800 kg 2,500 kg
Machine Dimensions (L×W×H) 2,600 × 1,450 × 1,900 mm 3,400 × 1,600 × 1,850 mm

Core Advantages

Key Advantages of the LZ-GB35(08) / GB35(10)

Gear-Driven Transmission

Gear and cam transmission provides stable mechanical movement for continuous paper bowl production.

Rigid Steel Machine Body

A rigid steel structure supports stable operation during continuous production.

Flexible Bowl Size Options

Supports multiple bowl sizes with flexible mould options for different food packaging requirements.

Stable Production Output

Designed for continuous production with consistent output and controlled forming performance.

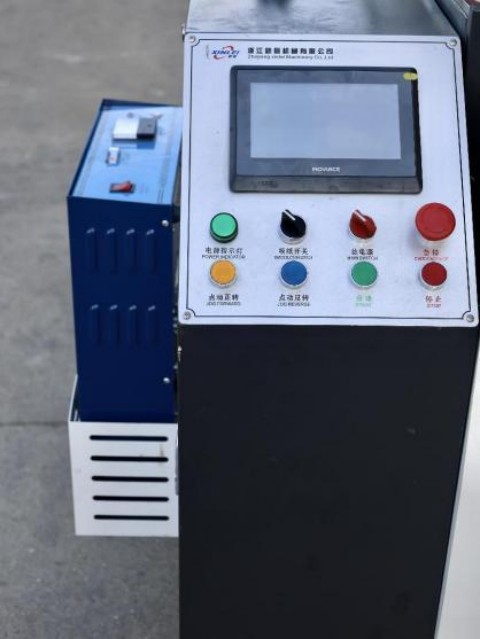

Intelligent PLC Control

PLC and touchscreen controls support convenient operation, parameter management and fault monitoring.

Smart Temperature Control

PID temperature control supports stable heating performance for different paper and coating materials.

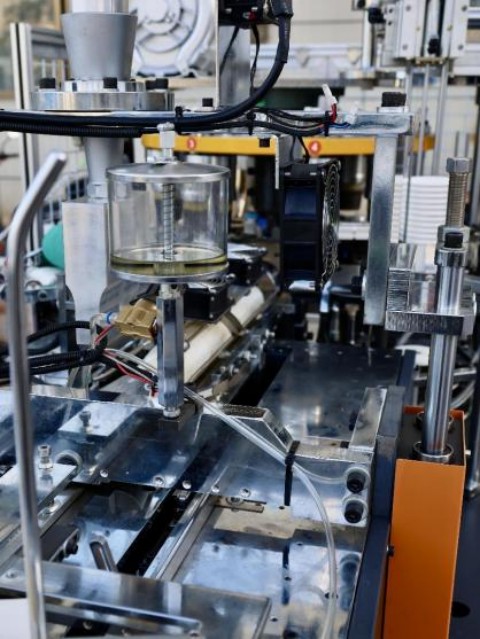

Automatic Lubrication

Automatic lubrication supports smooth mechanical operation and helps maintain stable machine performance.

Easy Maintenance Design

Separated transmission and forming sections simplify cleaning, inspection and routine maintenance.

Reliable Mechanical Structure

A robust mechanical design supports stable operation for continuous paper bowl production.
