Paper Bag Machine

Automatic Gear-Driven Salad Bowl Machine Series

This gear-driven salad bowl machine series features integral steel plate construction and an oily lubrication system for long-term stable operation. Both models handle single/double PE paper (180-350 g/m²) at 40-60 pcs/min, with PLC control and 15kW power.

GET A QUOTE · 12H REPLY VIEW FULL SPECIFICATIONS

QUICK FACTS · LZ-GB60/GB120 SERIES

Production Speed40–60 pcs/min
Bowl Size Range35–120 oz (custom tooling available)
Paper GSM180–350 g/m² (PE coated)
Drive SystemGear-Driven + Steel Body + Oily Lubrication
ControllerPLC Control
Total Power15 kW · 380V 50Hz
Machine Weight2,300–3,200 Kg
Overview Process Flow Specifications Advantages Get Quote

Why Choose This Machine

High-performance automatic salad bowl maker with reliable operation and wide size compatibility.

LZ-GB60/GB120 Gear-Driven

Salad Bowl Machine

This gear-driven salad bowl machine series features integral steel plate construction and an oily lubrication system for long-term stable operation. Both models handle single/double PE paper (180-350 g/m²) at 40-60 pcs/min, with PLC control and 15kW power. The LZ-GB60 produces 35-60 oz bowls (T:140-185mm, B:120-165mm, H:50-90mm), while the LZ-GB120 produces 35-120 oz bowls (T:140-200mm, B:120-165mm, H:50-170mm). Both support custom sizing per user requirements, with comprehensive automation from feeding to discharge.

40–60 pcs/min Speed
180–350 g/m² Paper Weight
35–120 oz Bowl Size
15 kW Power
2,300–3,200 Kg Weight
3400 × 1600 Dimension (mm)
REQUEST A QUOTE → COMPARE MODELS

Paper Bowl Packaging Solutions

Fully automatic paper bowl production with lid compatibility and leak-proof coating options.

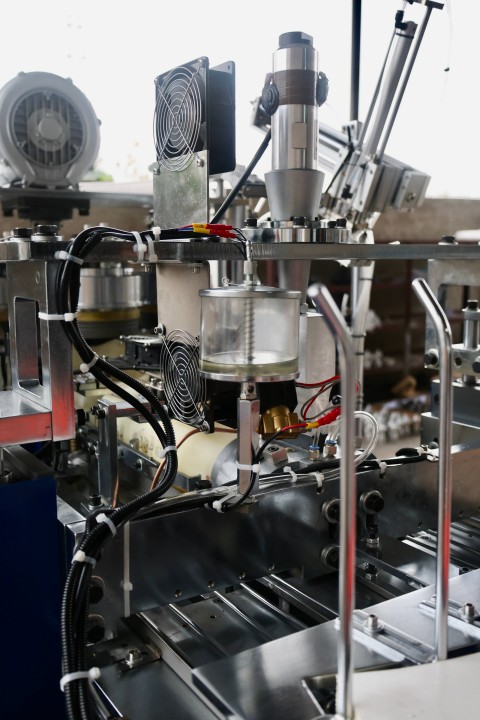

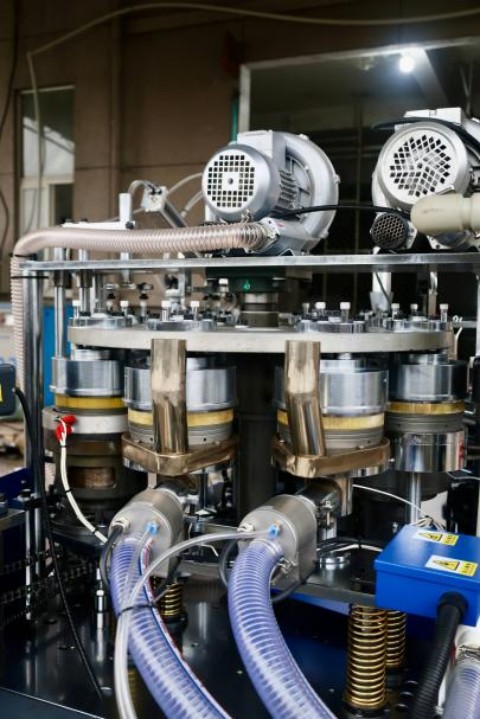

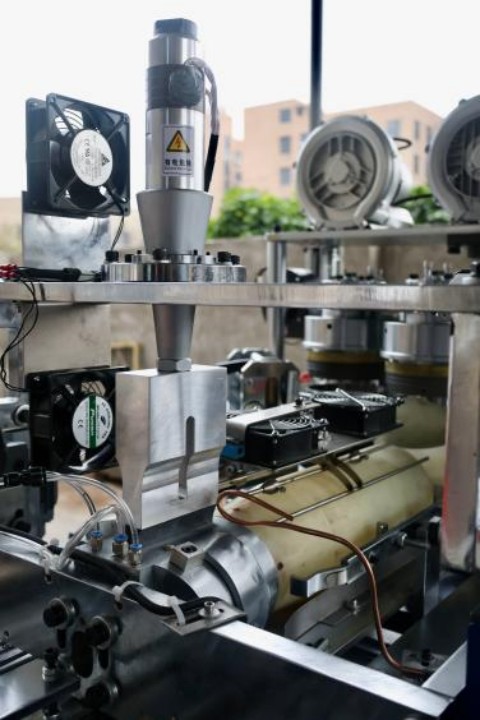

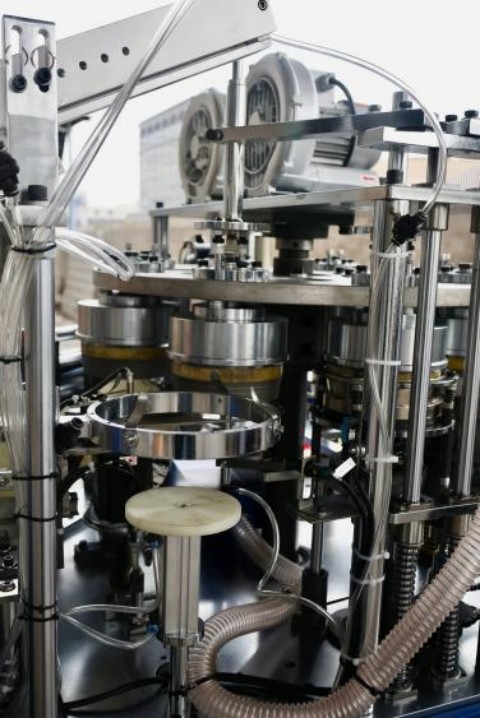

Precision Engineering Close-Up

The integral steel body, gear-driven transmission and oil lubrication system are designed for stable production of large paper bowls and salad bowls.

Main Technical Parameters — Full Comparison.

Choose the right configuration for your production requirements. Both models share the same core technology platform.

Parameter LZ-GB60 LZ-GB120
Machine Type Fully Automatic Salad Bowl Molding Machine Fully Automatic Salad Bowl Molding Machine
Production Scope 35 oz – 60 oz (replaceable per customer request) 35 oz – 120 oz (replaceable per customer request)
Raw Material Single & Double PE coated paper Single & Double PE coated paper
Paper Weight 180–320 g/m² 180–350 g/m²
Speed 40–60 pcs/min 40–60 pcs/min
Voltage 380V / 50Hz 380V / 50Hz
Total Power 15 kW 15 kW
Weight 3200 kg 2300 kg
Machine Dimensions (L×W×H) 2900 × 1500 × 1850 mm 3400 × 1600 × 1850 mm
Air Pressure Requirements 0.6 MPa; 0.6 m³/min 0.6 MPa; 0.6 m³/min

Core Advantages

Key Advantages of the LZ-GB60 / GB120

Large Bowl Production Range

Supports large bowl sizes from approximately 35 to 120 oz with flexible mould options.

Gear-Driven Transmission

Gear and cam transmission provides stable mechanical movement for continuous large-bowl production.

Heavy-Duty Steel Machine Body

A rigid steel frame supports stable operation and long-term production performance.

Stable Production Output

Produces approximately 40–60 bowls per minute depending on the model and bowl specification.

Flexible Mould Configuration

Flexible mould options allow the machine to accommodate different large bowl sizes and production requirements.

Automatic Lubrication

Automatic oil lubrication supports smooth mechanical operation and helps maintain long-term machine performance.

Wide Material Compatibility

Supports single-PE and double-PE coated paper materials for different food packaging applications.

Intelligent PLC Control

PLC and touchscreen controls support convenient operation, parameter adjustment and production monitoring.

Easy Maintenance Design

Practical machine construction simplifies routine inspection, cleaning and maintenance.
